KZE-BB Series

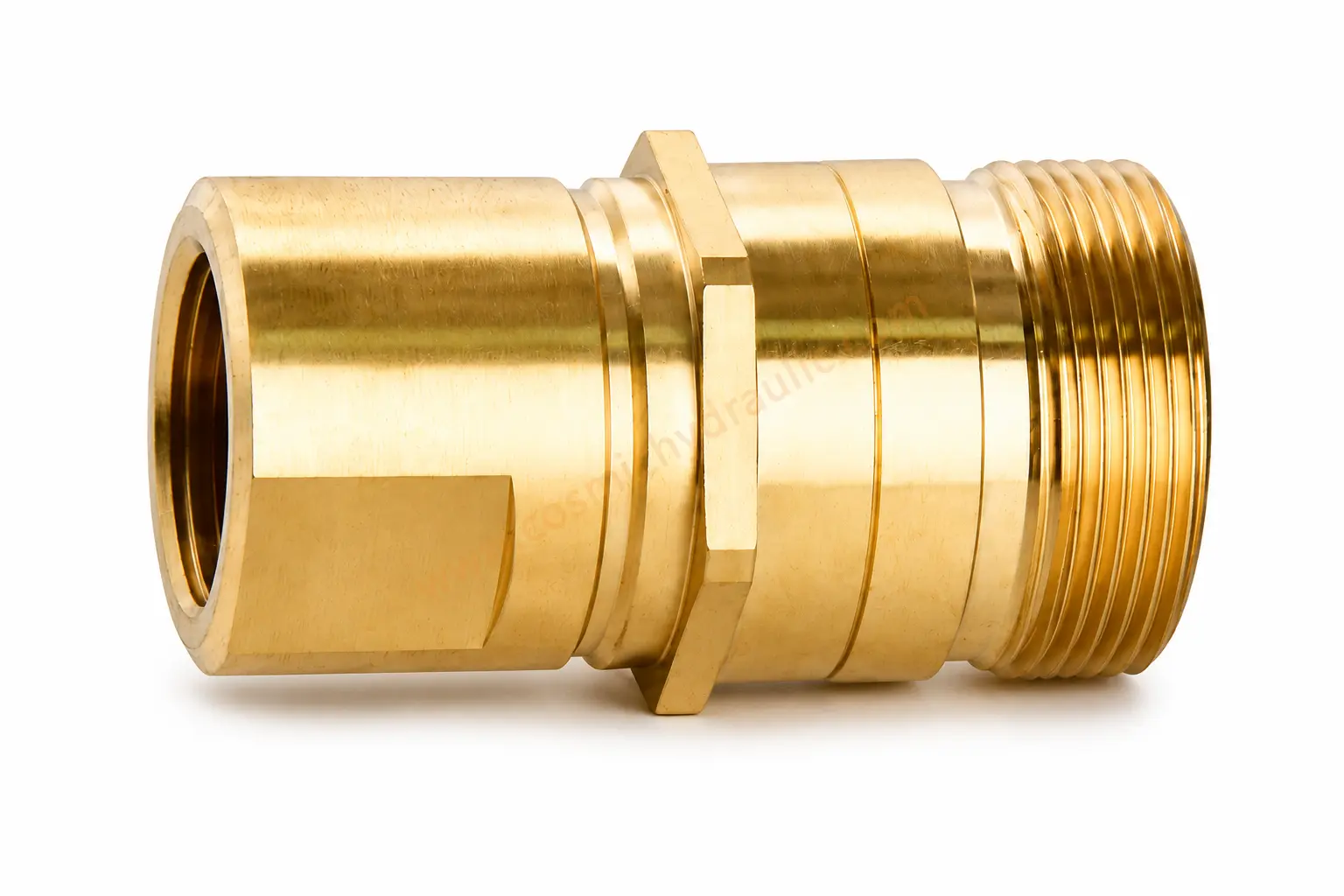

KZE-BB thread-to-connect couplings support pressure connection with minimal or no spillage in high-pressure, high-flow hydraulic applications.
Features

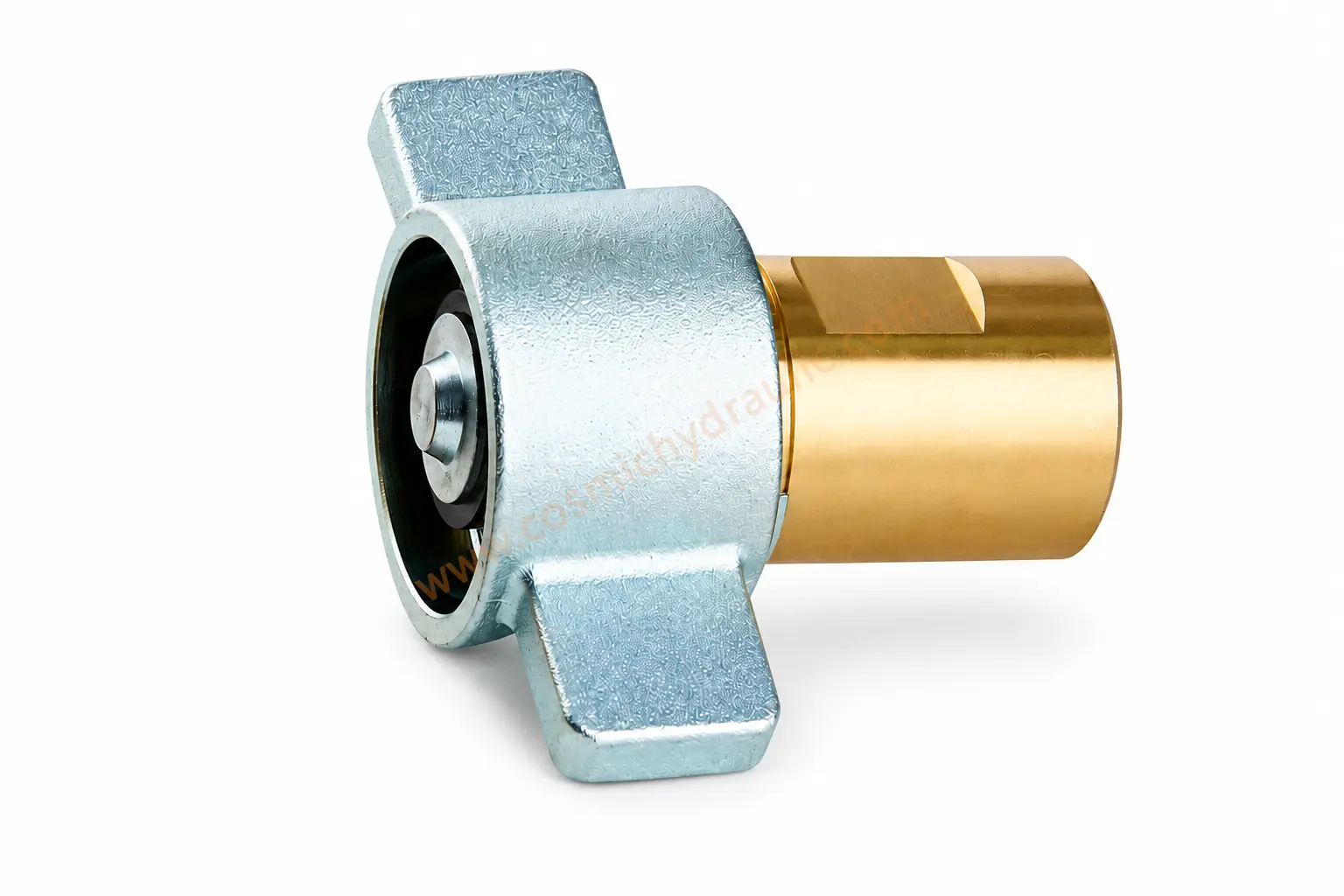

- The heavy-duty wing nut withstands the hammer blows commonly used to tighten and loosen the coupler.
- The assembled valve seal permits full-pressure connection and disconnection without seal washout.
- The flush-face valve minimizes air inclusion and fluid spillage.
- Corrosion-resistant brass supports a broad application range and reliable operation.
- Compatible with PARKER 6100, FASTER FB, AEROQUIP 5100, and HANSEN 96 series.
Technical Specifications
| Body Size (in) | 1 | 1-1/4 |
|---|---|---|
| Code | 08 | 10 |
| Rated Pressure (MPa) | 20.7 | 20.7 |
| Rated Flow (L/min) | 189 | 189 |
| Temperature Range (NBR) | -20℃ to +100℃ | |
Performance
The performance curve shows pressure-drop changes for different sizes at rated flow.
Coupling Fitting
The thread-to-connect design supports connection under pressure with minimal leakage in high-pressure, high-flow service.
| PART No. | L | L2 | D1 | CH1 | CH2 | T |
|---|---|---|---|---|---|---|
| KZE-BB-06-SP | 133.5 | 79.2 | 106 | 29 | 33.5 | NPT1/2 |
| KZE-BB-06-SP | 133.5 | 79.2 | 106 | 29 | 33.5 | NPT3/4 |
| KZE-BB-08-SP | 157 | 90 | 110 | 36 | 39.5 | NPT1 |
| KZE-BB-10-SP | 165 | 94 | 132 | 45 | 48 | NPT1-1/4 |
