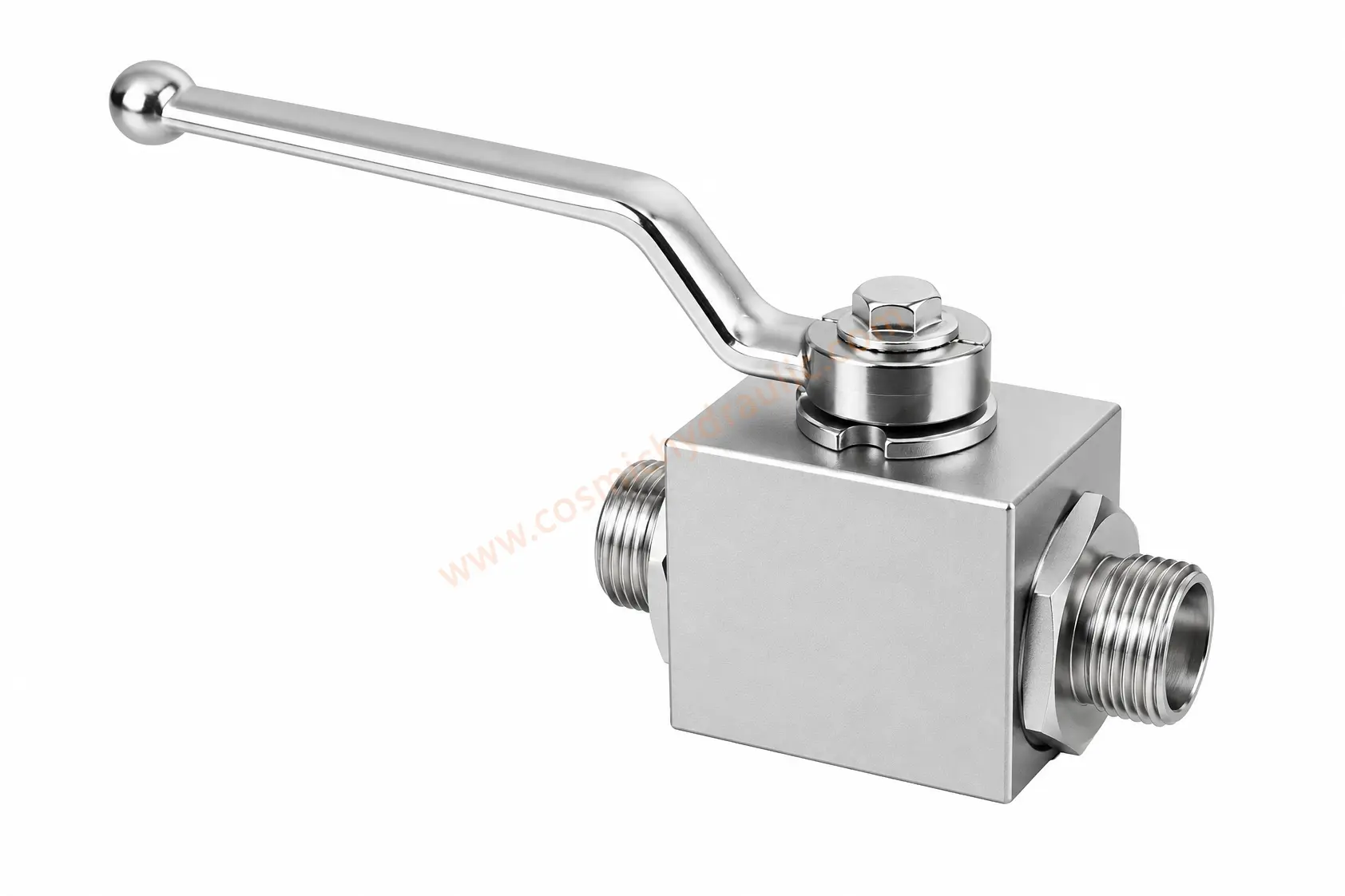

KHB / KHM Ball Valve

Features

• Two-way ball valves open or close the flow path with simple operation and unrestricted flow.
• The compact body provides fast, reliable operation and helps prevent cavitation.
• KHB covers DN4-DN25/40; KHM covers DN32-DN50.

Dimensions and Connections

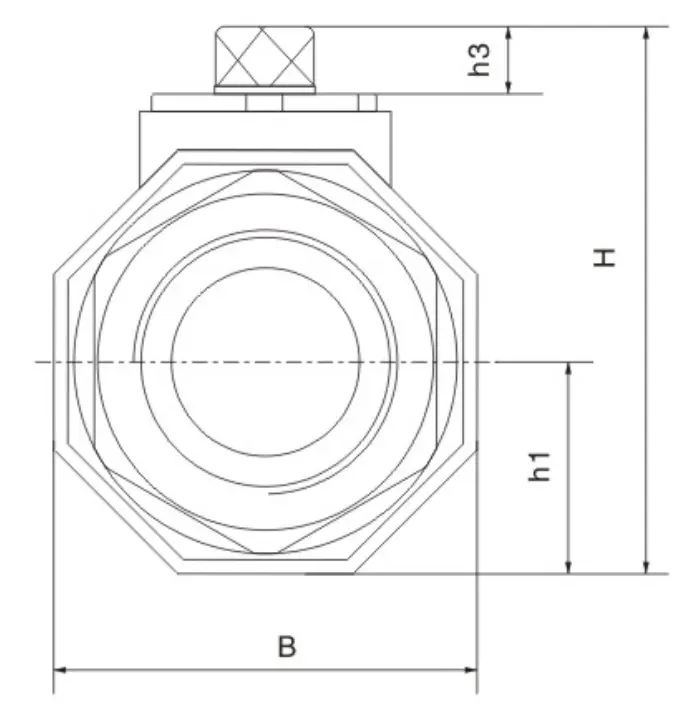

KHB / KHM Overall Dimensions

JB987-77 External Thread Seal

代号	型号	DN	PN bar	LW	RA	d1	i	L	L1	B	H	h1	h2	h3	SW1	SW2
80065	KHB-M12×1.25	4	500	4	8	M12×1.25	9	61	37	28	44.5	13	34	8	9	24
80066	KHB-M16×1.5	6	500	6	11	M16×1.5	11	69	37	28	44.5	13	34	8	9	24
80067	KHB-M22×1.5	8	500	8	16	M22×1.5	12	76	42	32	52.5	17	40	8	9	27
80068	KHB-M27×1.5	10	500	10	20	M27×1.5	12	76	42	32	52.5	17	40	8	9	32
80070	KHB-M30×1.5	16	400	15	24	M30×1.5	13	84	47	38	63.5	19	46	11	9	32
80071	KHB-M36×2	20	315	20	30	M36×2	15	103	60	48	75	24	57	12	12	41
80072	KHB-M42×2	25	315	25	35	M42×2	18	116	65	57	82	28.5	64	12	12	46
80073	KHM-M52×2	32	315	30	40	M52×2	20	149	84	82	108	41	87.5	14	14	55
80074	KHM-M60×2	40	315	38	50	M60×2	22	174	91	93	119.5	46.5	99	14	17	70
80075	KHM-M72×2	50	315	48	60	M72×2	24	178	100	110	135.5	55	115	14	17	80

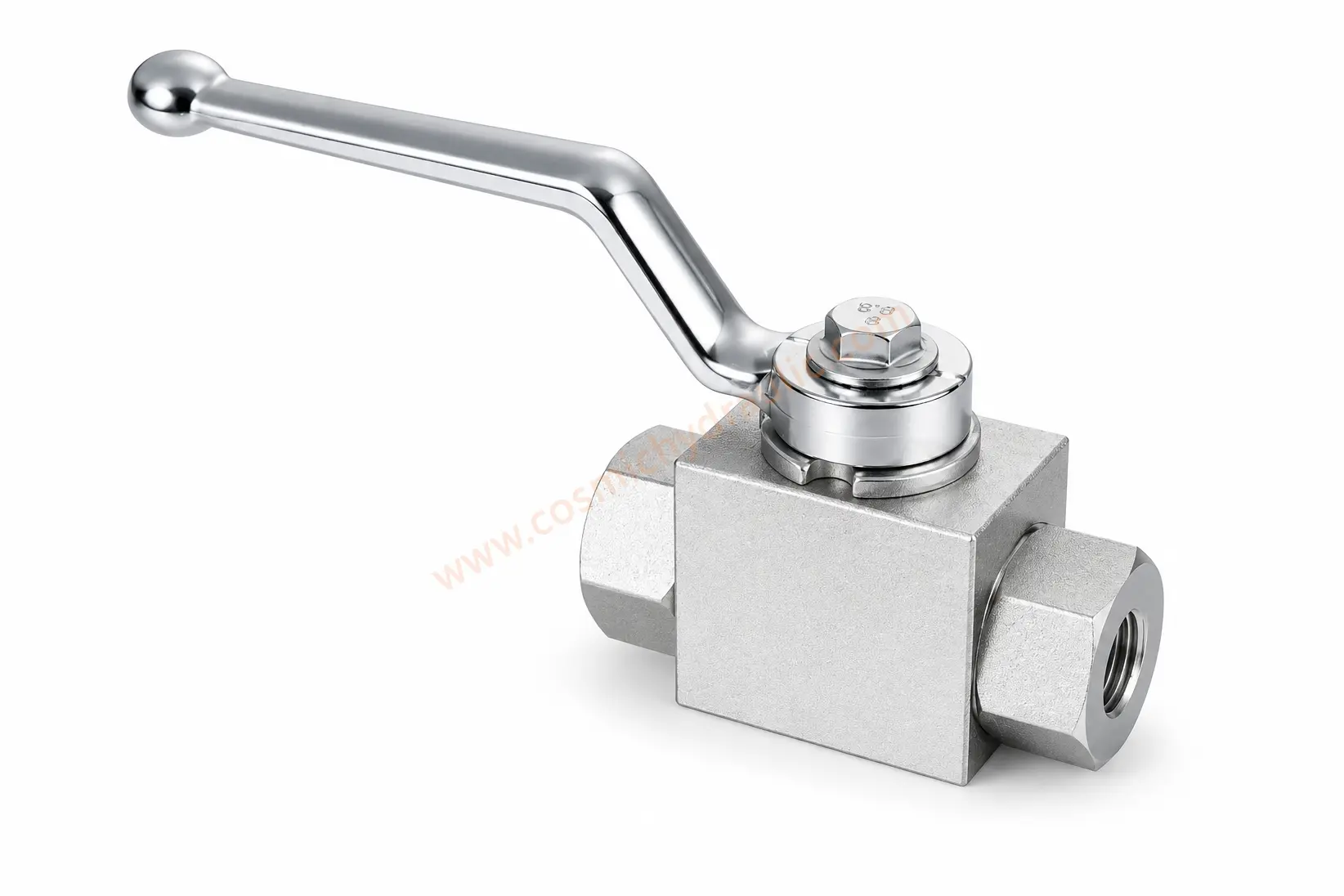

ISO 228 Internal Thread

代号	型号	DN	PN bar	LW	d1	i	L	L1	B	H	h1	h2	h3	SW1	SW2
80076	KHB-G1/8	4	500	6	G1/8	10	69	37	28	44.5	13	32	8	9	24
80077	KHB-G1/4	6	500	6	G1/4	14	69	37	28	44.5	13	32	8	9	24
80078	KHB-G3/8	10	500	10	G3/8	14	72	42	32	52.5	17	40	8	9	27
80079	KHB-G1/2	13	500	13	G1/2	16	83	48	35	52.5	17	40	8	9	32
80137	KHB-G1/2	16	400	15	G1/2	16	83	47	38	63.5	19	46	11	12	32
80080	KHB-G3/4	20	315	20	G3/4	18	95	60	48	75	24	57	12	12	41
80082	KHB-G1	25	315	25	G1	20.5	113	65	57	82	28.5	64	12	12	46
80082-1	KHB-G1¼	25/32	315	25	G1¼	22	120	65	60	82	28.5	64	12	14	55
80082-2	KHB-G1½	25/40	315	25	G1½	24	130	65	60	82	28.5	64	12	14	55
80129	KHM-G1¼	32	315	30	G1¼	22	110	84	82	108	41	87.5	14	17	60
80083	KHM-G1½	40	315	38	G1½	24	130	91	93	119.5	46.5	99	14	17	70
80084	KHM-G2	50	315	48	G2	26	140	100	110	135.5	55	115	14	17	80

ANSI B1.20.1 NPT Female

代号	型号	DN	PN bar	LW	d1	i	L	L1	B	H	h1	h2	h3	SW1	SW2
80085	KHB-1/8NPT	4	500	6	1/8NPT	10.5	69	37	28	44.5	13	32	8	9	24
80086	KHB-1/4NPT	6	500	6	1/4NPT	14	69	37	28	44.5	13	32	8	9	24
80087	KHB-3/8NPT	10	500	10	3/8NPT	14	72	42	32	52.5	17	40	8	9	27
80088	KHB-1/2NPT	13	500	13	1/2NPT	17	83	48	35	52.5	17	40	8	9	32
80091	KHB-3/4NPT	20	315	20	3/4NPT	19	95	60	48	75	24	57	12	12	41
80092	KHB-1NPT	25	315	25	1NPT	22.5	113	65	57	82	28.5	64	12	12	50
80092-1	KHB-1¼NPT	25/32	315	25	1¼NPT	22.5	120	65	60	82	28.5	64	12	14	55
80092-2	KHB-1½NPT	25/40	315	25	1½NPT	25	130	65	60	82	28.5	64	12	14	55
80093	KHM-1¼NPT	32	315	30	1¼NPT	25	120	84	82	108	41	87.5	14	14	55
80094	KHM-1½NPT	40	315	38	1½NPT	25	130	91	93	119.5	46.5	99	14	17	70
80095	KHM-2NPT	50	315	48	2NPT	30	140	100	110	135.5	55	115	14	17	80

SAE J514 UN/UNF Internal Thread

代号	型号	DN	PN bar	LW	d1	i	L	L1	B	H	h1	h2	h3	SW1	SW2
80500	KHB-SAE4	6	500	6	SAE4	12	69	37	28	44.5	13	32	8	9	24
80501	KHB-SAE6	10	500	10	SAE6	13	72	42	32	52.5	17	40	8	9	27
80502	KHB-SAE8	13	500	13	SAE8	15	83	48	35	52.5	17	40	8	9	32
80503	KHB-SAE12	20	315	20	SAE12	20	95	60	48	75	24	57	12	12	41
80504	KHB-SAE16	25	315	25	SAE16	20	113	65	57	82	28.5	64	12	12	46
80505	KHB-SAE20	25/32	315	25	SAE20	20	120	65	60	82	28.5	64	12	12	55
80506	KHB-SAE24	25/40	315	25	SAE24	20	130	65	60	82	28.5	64	12	12	55
80507	KHM-SAE20	32	315	30	SAE20	20	120	84	82	108	41	87.5	14	14	55
80508	KHM-SAE24	40	315	38	SAE24	20	130	91	93	119.5	46.5	99	14	17	70
80509	KHM-SAE32	50	315	40	SAE32	20	140	100	110	135.5	55	115	14	17	80

DIN 2353 Light Series

代号	型号	DN	PN bar	LW	RA	d1	i	L	L1	B	H	h1	h2	h3	SW1	SW2
80096	KHB-06LR	4	500	4	6	M12×1.25	10	67	37	28	44.5	13	32	8	9	24
80097	KHB-08LR	6	500	6	8	M14×1.5	10	67	37	28	44.5	13	32	8	9	24
80098	KHB-10LR	8	500	8	10	M16×1.5	11	74	42	32	52.5	17	40	8	9	27
80099	KHB-12LR	10	500	10	12	M18×1.5	11	74	42	32	52.5	17	40	8	9	27
80100	KHB-15LR	13	500	13	15	M22×1.5	12	82	48	35	52.5	17	40	8	9	32
80101	KHB-15LR	16	400	13	15	M22×1.5	12	82	47	38	63.5	19	46	11	9	32
80102	KHB-18LR	13	500	13	18	M26×1.5	12	82	48	35	52.5	17	40	8	9	32
80103	KHB-18LR	16	400	15	18	M26×1.5	12	82	47	38	63.5	19	46	11	12	32
80104	KHB-22LR	20	315	19	22	M30×2	14	101	60	48	75	24	57	12	12	41
80105	KHB-28LR	25	315	25	28	M36×2	14	108	65	57	82	28.5	64	12	12	46
80128	KHB-35LR	25/32	315	25	35	M45×2	16	112	65	60	82	28.5	64	12	14	46
80106	KHM-35LR	32	315	30	35	M45×2	16	141	84	82	108	41	87.5	14	14	60
80107	KHM-42LR	40	315	38	42	M52×2	16	162	91	93	119.5	46.5	99	14	17	70

DIN 2353 Heavy Series

代号	型号	DN	PN bar	LW	RA	d1	i	L	L1	B	H	h1	h2	h3	SW1	SW2
80108	KHB-08SR	4	500	5	8	M16×1.5	12	73	37	28	44.5	13	32	8	9	24
80109	KHB-10SR	6	500	6	10	M18×1.5	12	73	37	28	44.5	13	32	8	9	24
80110	KHB-12SR	8	500	8	12	M20×1.5	12	76	42	32	52.5	17	40	8	9	27
80111	KHB-14SR	10	500	10	14	M22×1.5	14	80	42	32	52.5	17	40	8	9	27
80113	KHB-16SR	13	500	13	16	M24×1.5	14	86	48	35	52.5	17	40	8	9	32
80114	KHB-20SR	13	500	13	20	M30×2	16	90	48	35	52.5	17	40	8	9	32
80115	KHB-20SR	16	400	15	22	M30×2	16	90	47	38	63.5	19	46	11	9	32
80116	KHB-25SR	20	315	19	25	M36×2	18	109	60	48	75	24	57	12	12	41
80117	KHB-30SR	25	315	25	30	M42×2	20	120	65	57	82	28.5	64	12	12	46
80118	KHB-38SR	25/32	315	25	38	M52×2	22	124	65	60	82	28.5	64	12	14	55
80119	KHM-38SR	32	315	30	38	M52×2	22	153	84	82	108	41	87.5	14	14	60
