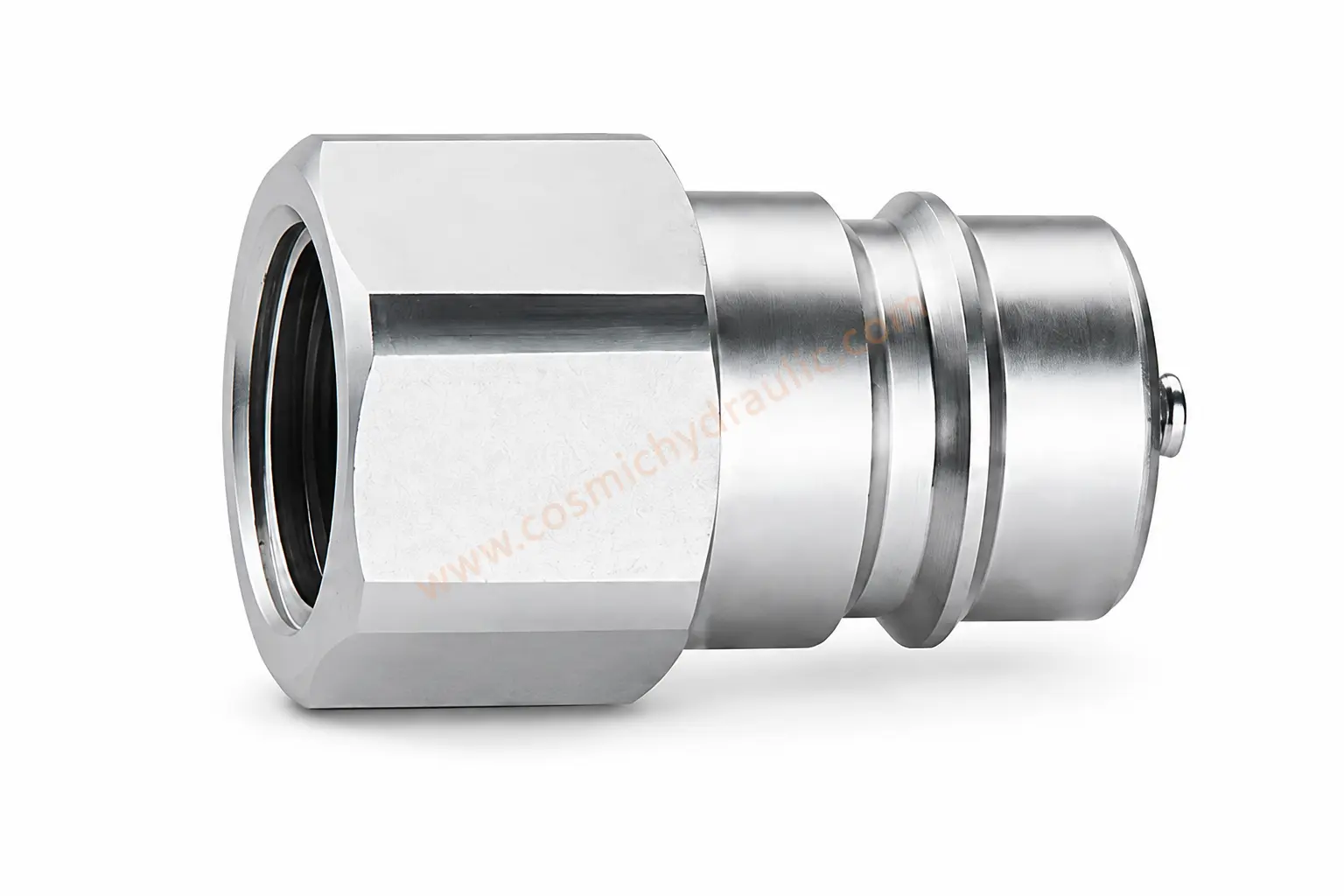

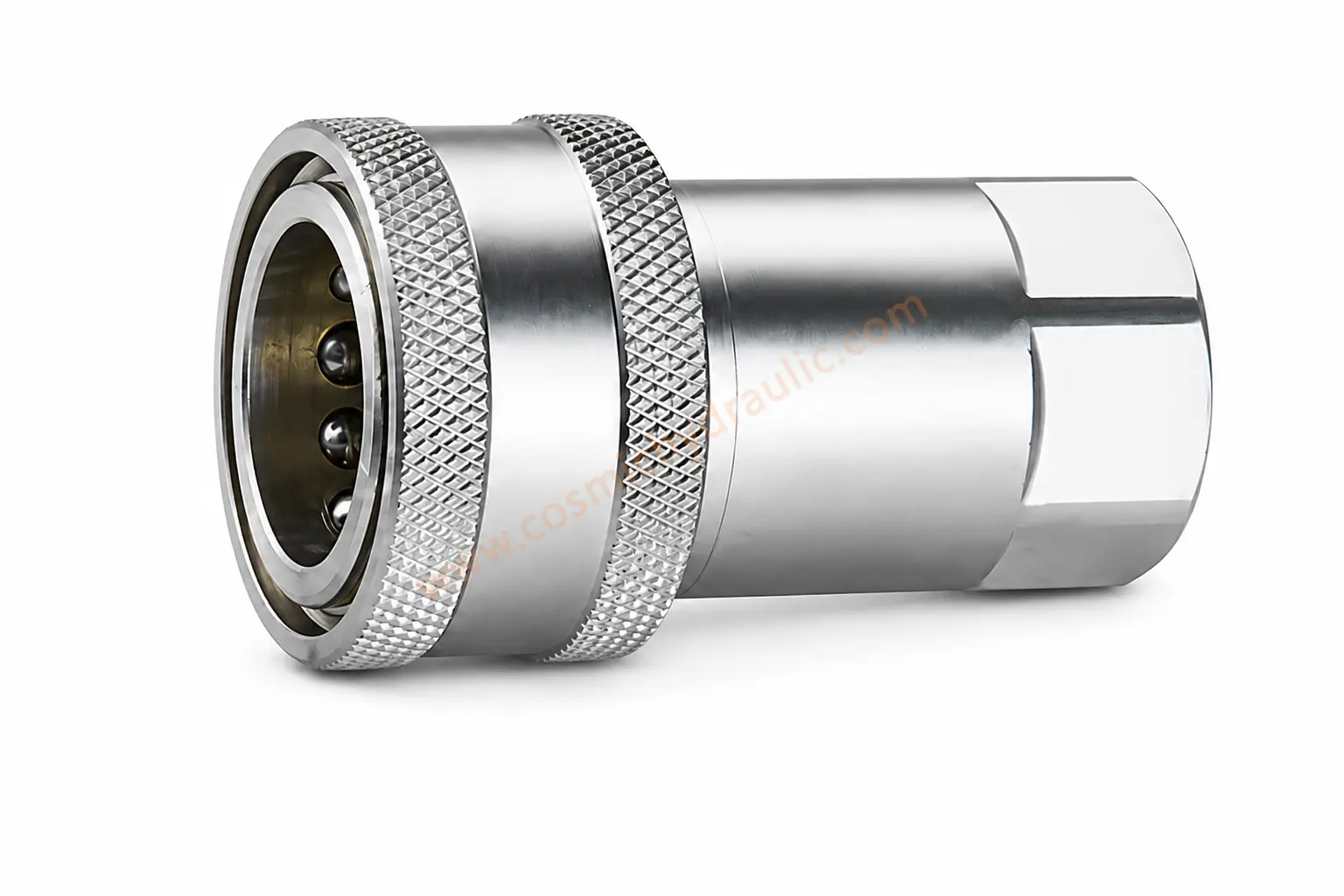

ZY-KZE Series
ZY-KZE series provides a proven hydraulic connection for construction equipment, forestry equipment, agricultural machinery, oil tools, oil equipment, steel mill machinery, and other demanding applications.
Features
- The new valve design resists high flow and impulse pressure for improved performance.
- Poppet valves available to prevent uncoupled leakage.
- Poppet valves open automatically when coupled and maintain flow within rated working pressure.
- Critical parts are hardened for durability.
- A dependable ball-locking mechanism holds the mating halves together.
- Socket and plug are precision machined from solid bar stock.
- New environmentally conscious zinc plating provides improved corrosion resistance.
- The series conforms to ISO 7241-A.
- Compatible with PARKER 6600, FASTER ANV, AEROQUIP 5600, and HANSEN HA15000 series.
Technical Specifications
| Body Size (in) | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1-1/4 | 1-1/2 | 2 |
|---|---|---|---|---|---|---|---|---|
| Code | 01 | 02 | 03 | 04 | 06 | 10 | 12 | 16 |
| Rated Pressure (MPa) | 34.5 | 20.7 | 20.7 | 20.7 | 20.7 | 13.8 | 13.8 | 10.4 |
| Rated Flow (L/min) | 38 | 11.5 | 23 | 45.5 | 106 | 330 | 830 | 900 |
| Temperature Range (NBR) | -20℃ to +100℃ | |||||||

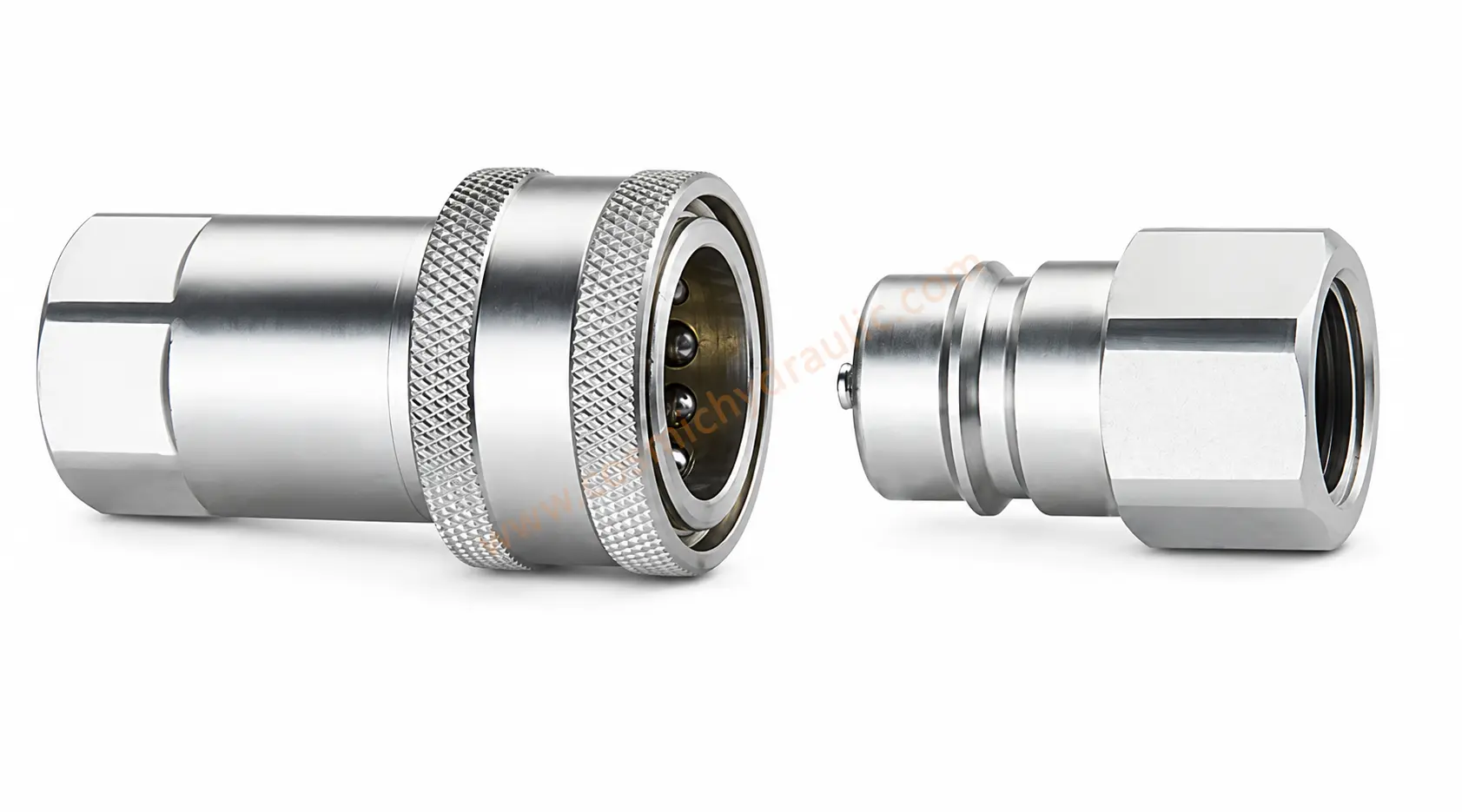

Coupling Fitting
The coupling assembly covers imperial and metric connections for a wide range of industrial hydraulic equipment.
| PART No. | ISO | L | L1 | L2 | L3 | D1 | D2 | CH1 | CH2 | T |
|---|---|---|---|---|---|---|---|---|---|---|
| ZY-KZE-01T-SP | DN5 | 70 | 49 | 36 | 17 | 28 | 13 | 17 | 17 | G1/8 |
| ZY-KZE-02T-SP | DN6.3 | 72 | 58 | 36 | 22.5 | 27 | 14.2 | 19 | 19 | M14*1.5 G1/4 |
| ZY-KZE-03T-SP | DN10 | 80 | 65 | 40 | 25 | 35 | 19.1 | 22 | 22 | M16*1.5 M18*1.5 G3/8 |
| ZY-KZE-04T-SP | DN12.5 | 90 | 66 | 46 | 25 | 39.5 | 21.7 | 27 | 27 | M22*1.5 M20*1.5 G1/2 |
| ZY-KZE-06T-SP | DN20 | 111 | 79 | 55 | 26 | 49 | 30 | 34 | 34 | M27*2 M27*1.5 G3/4 |
| ZY-KZE-08T-SP | DN25 | 120 | 94 | 59.5 | 36 | 56 | 34.3 | 41 | 41 | M33*2 G1 |
| ZY-KZE-10T-SP | DN31.5 | 141 | 115 | 70 | 45 | 69 | 45 | 54 | 54 | G1-1/4 |
| ZY-KZE-12T-SP | DN40 | 150 | 124 | 75 | 49 | 70 | 50 | 60 | 60 | G1-1/2 |
| ZY-KZE-16T-SP | DN50 | 160 | 132.5 | 80 | 52 | 102 | 70 | 77 | 77 | G2 |
