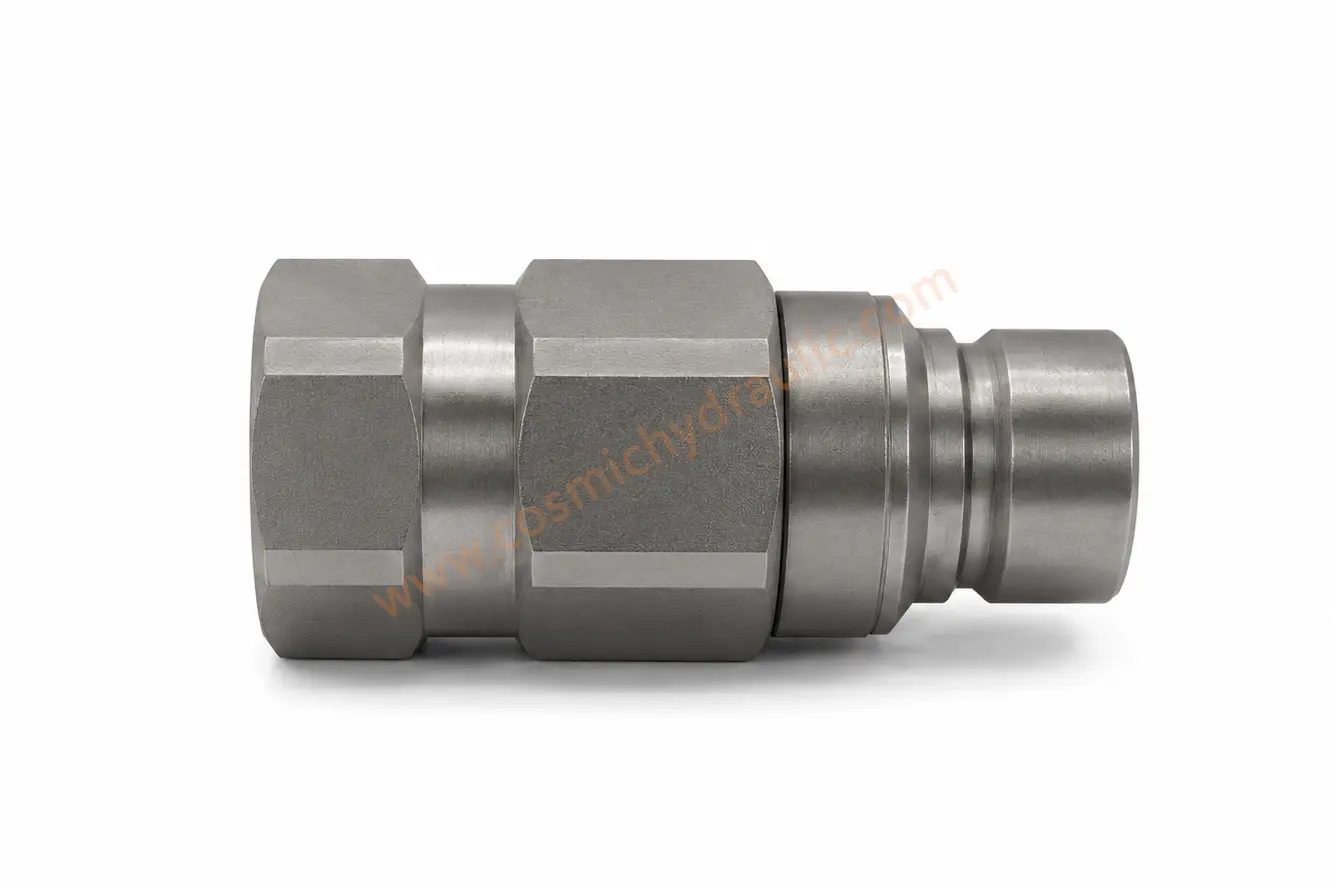

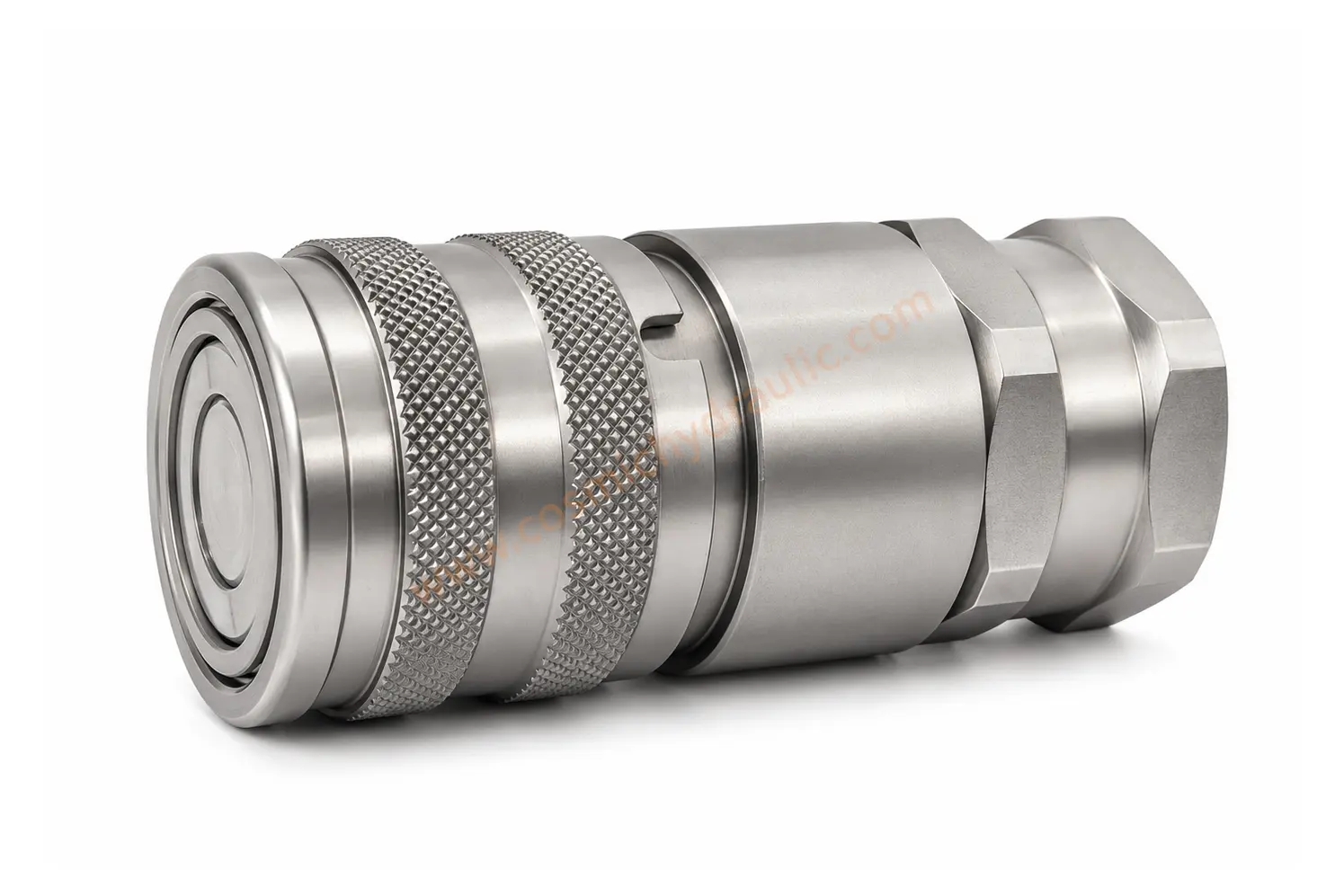

ZY-FFH Series
ZY-FFH ISO 16028 flat face quick couplings combine low-spill valving, a sleeve lock, and zinc-nickel alloy plating for demanding hydraulic service.
Features
- The new valve design resists high flow and impulse pressure for improved performance.
- The sleeve rotates after connection to engage the lock and prevent accidental disconnection when dragged.
- The sleeve mechanism helps prevent debris from entering and incorporates a dust seal around the spring area.
- Hardened nipples, sleeves, and solid bar stock resist hydraulic and mechanical shock damage.
- A bonded nitrile/PTFE anti-blowout seal helps prevent extrusion or damage in severe service.
- A durable ball-locking mechanism distributes load evenly and reduces hose torque. CAUTION: Do not use as a swivel.
- Flush valving minimizes fluid loss during disconnection and air inclusion during reconnection.
- New zinc-nickel alloy plating provides enhanced corrosion resistance.
- The ZY-FFH Series conforms to ISO 16028.
- Compatible with PARKER FEM, STUCCHI FIRG, AEROQUIP FD89, and HANSEN FF series.
Technical Specifications
| Body Size (in) | 1/4 | 3/8 | 1/2 | 3/4 | 1 |
|---|---|---|---|---|---|
| Code | 02 | 03 | 04 | 06 | 08 |
| Working Pressure (MPa) | 35.0 | 35.0 | 35.0 | 35.0 | 35.0 |
| Rated Flow (L/min) | 25 | 50 | 110 | 160 | 230 |
| Temperature Range (NBR) | -20℃ to +100℃ | ||||
Coupling Fitting
The ZY-FFH flat-face coupling assembly combines low-spill valving with a corrosion-resistant finish.
| PART No. | ISO | D1 | D2 | D3 | HEX1 | HEX2 | T |
|---|---|---|---|---|---|---|---|
| ZY-FFH-02T-SP | DN6.3 | 20 | 21 | 11.6 | 18 | 19 | M14*1.5 G1/4 |
| ZY-FFH-03T-SP | DN10 | 27 | 26 | 16.1 | 24 | 24 | M16*1.5 M18*1.5 G3/8 |
| ZY-FFH-04T-SP | DN12.5 | 30 | 33 | 19.7 | 27 | 30 | M22*1.5 G1/2 |
| ZY-FFH-06T-SP | DN20 | 38 | 37 | 24.5 | 34 | 34 | M27*2 G3/4 |
| ZY-FFH-08T-SP | DN25 | 48 | 46 | 29.9 | 42 | 42 | M33*2 G1 |
