BOBCAT 4815

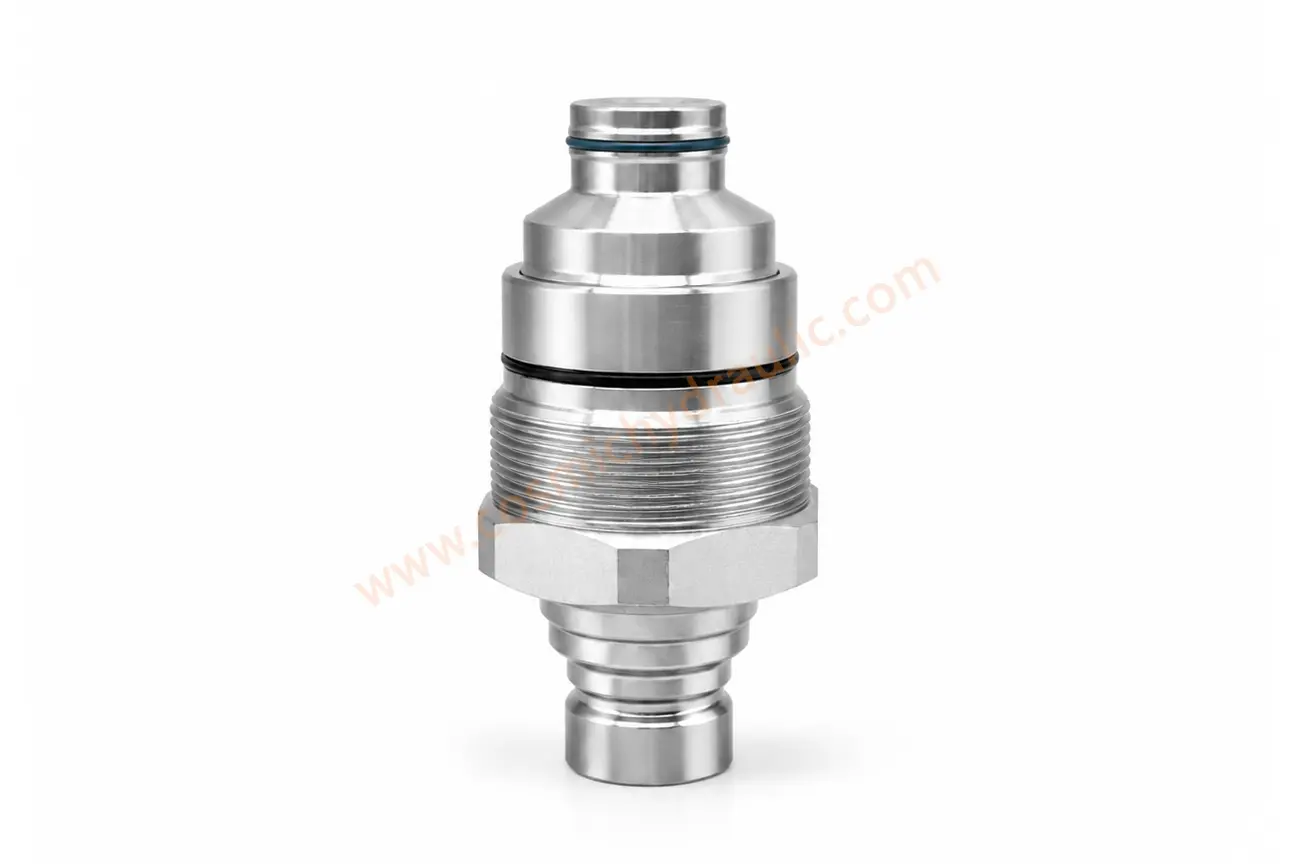

BOBCAT 4815 Bobcat replacement quick coupler conforms to ISO 16028 for equipment and attachment hydraulic lines.
Product Features and Applications
- Manufactured in accordance with ISO 16028.
- The body uses premium steel with zinc or zinc-nickel plating.
- Flush faces reduce dirt ingress and fluid loss during disconnection.
- Standard NBR seals are fitted; FKM or EPDM seals are optional.
Suitable for Bobcat equipment, construction attachments, and hydraulic connections in demanding environments.
Product Specifications
| Item | Specification |
|---|---|
| Standard | ISO 16028 |
| Material | Premium steel with zinc/zinc-nickel plating |
| Seals | Standard NBR; FKM or EPDM optional |
| Backup Ring | PTFE |
| Working Temperature | -25°C to +125°C |
Dimensions
| ISO | L1 | L2 | L3 | ØD | S1 | S2 | T | 母接头编号 | 公接头编号 |
|---|---|---|---|---|---|---|---|---|---|
| 12.5 | 195.7 | 108 | 105 | 38 | 50 | 50 | M48*1.5 | KSPH-08F-M4815 | KSPH-08M-M4815 |
