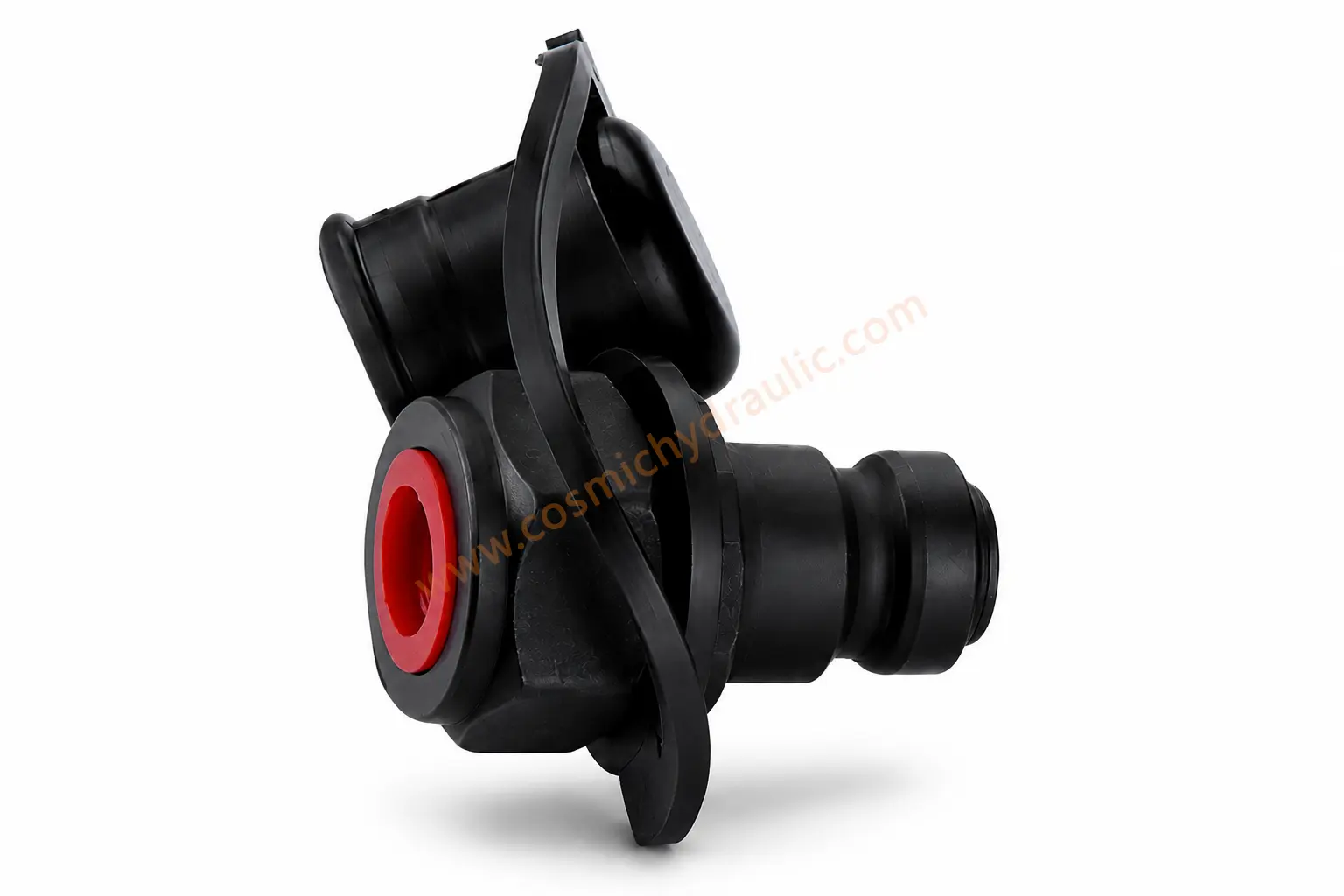

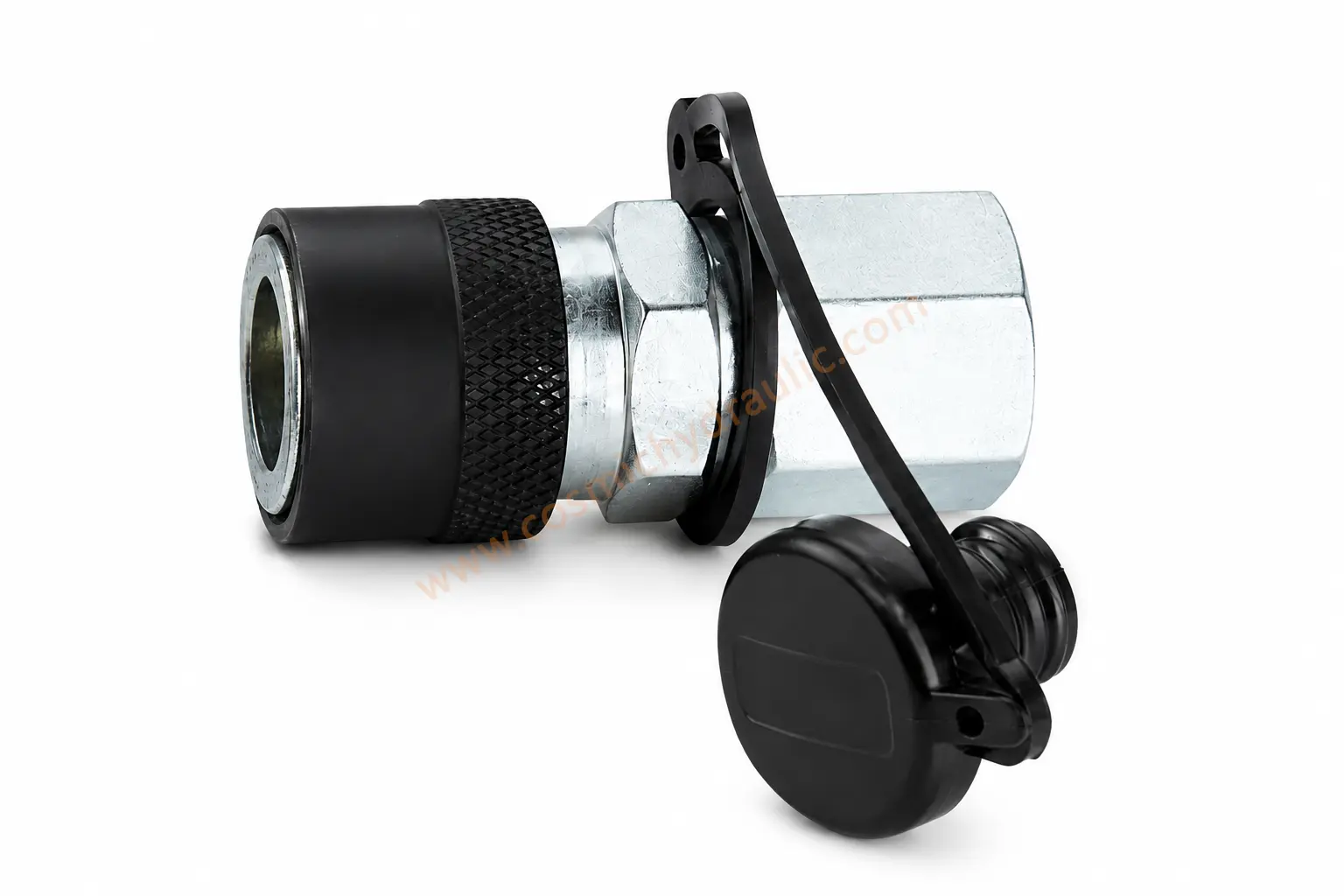

ZY-WS Series
Technical Specifications
| Specification | Value |
|---|---|
| Body Size (in) | G1/4 |
| Material Quality | STEEL |
| Rated Pressure (MPa) | 150 |
| Rated Flow (L/min) | 12 |
| Temperature Range (NBR) | -20℃ to +100℃ |
| Temperature Range (FKM) | -20℃ to +180℃ |

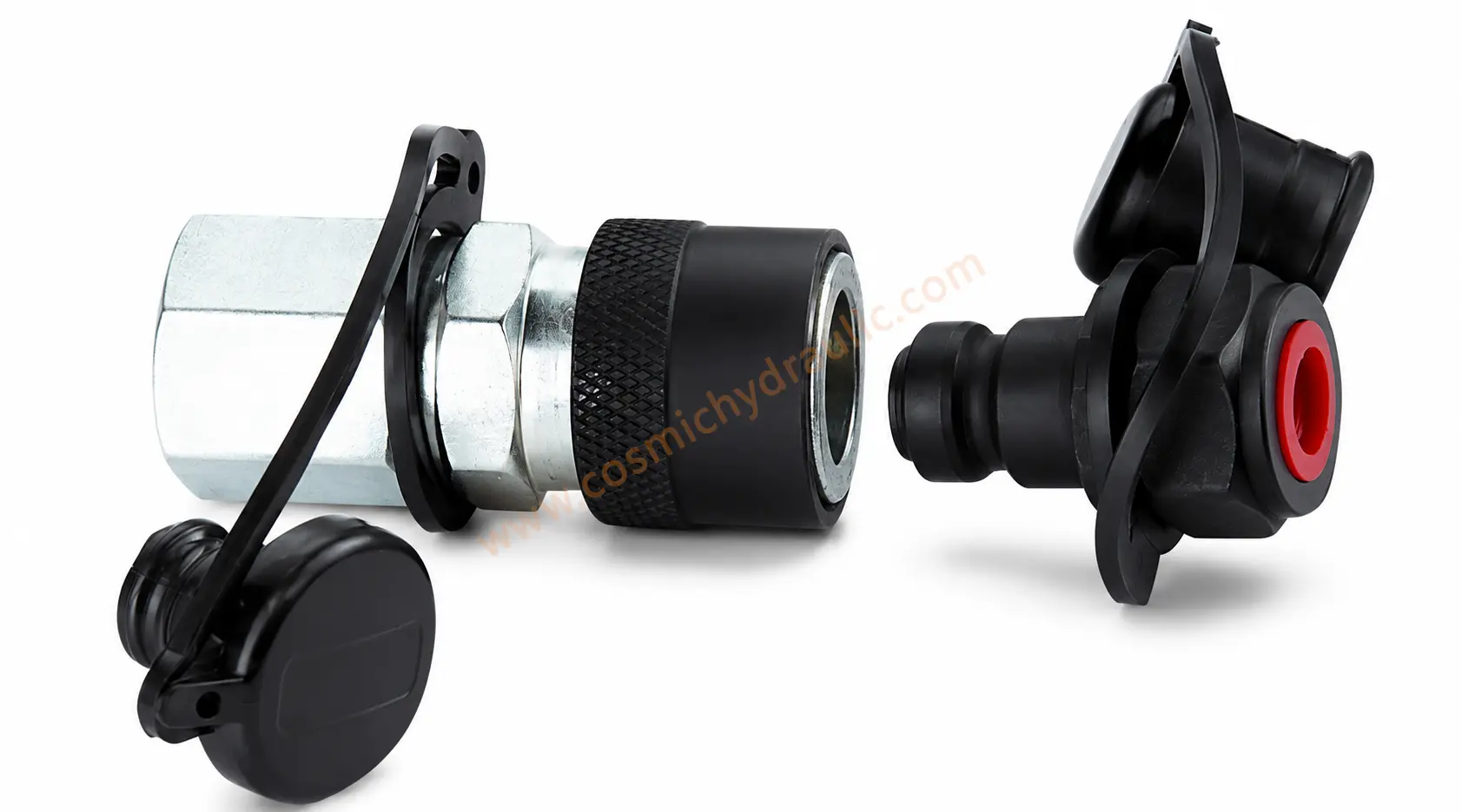

Coupling Fitting
The steel coupling assembly provides a compact, reliable connection for ultra-high-pressure hydraulic lines.

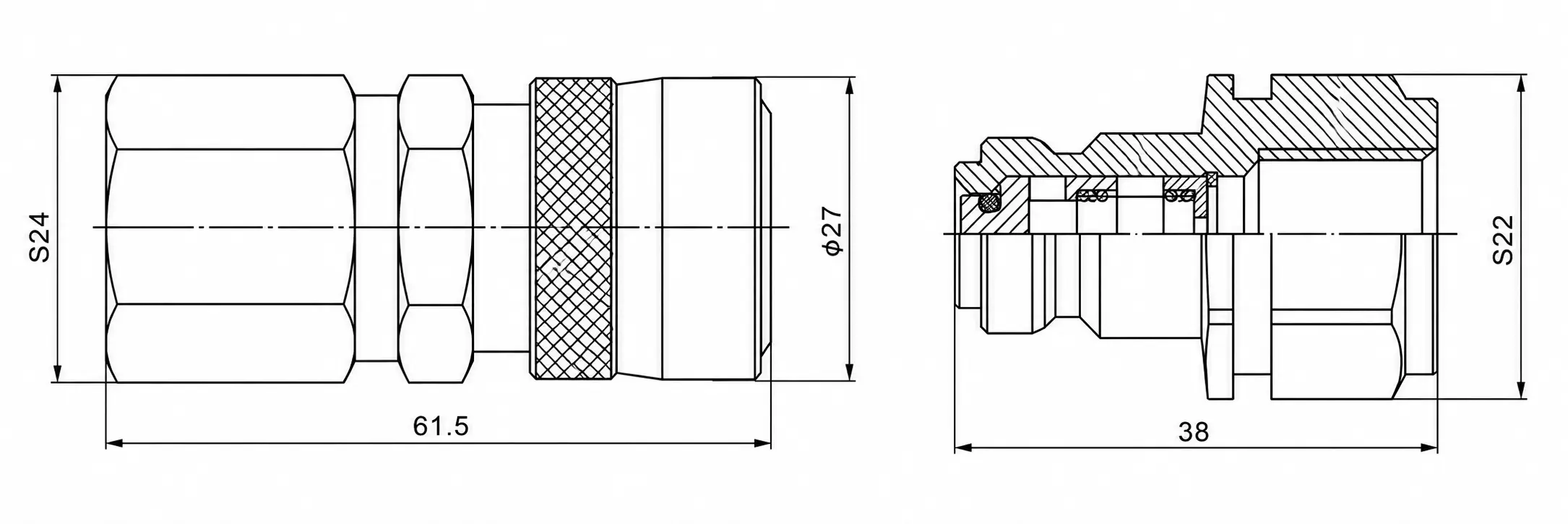

| PART No. | ISO | L | L1 | L2 | D1 | D2 | GH1 | GH2 | T |
|---|---|---|---|---|---|---|---|---|---|
| ZY-TF-02-SPF | DN6 | 83 | 62.5 | 38 | 28 | 15 | 24 | 22 | G1/4 |
