KHB / KHB3K Ball Valve
KHB and KHB3K high-pressure ball valves are used for hydraulic shut-off, flow isolation, and service control in high-pressure pipe systems.
Features
- Designed for quick shut-off, isolation, and flow control in hydraulic systems.
- KHB straight-through valves suit standard two-way lines; KHB3K three-way valves support switching or diverting circuits.
- Mounting options include full holes, threaded holes, and side double-threaded mounting holes.
Mounting Dimensions
Full Holes Dimensions
| DN | A | d | F |
|---|---|---|---|
| 4 | 30 | 4.6 | 5 |
| 6 | 30 | 4.6 | 5 |
| 10 | 32 | 6.6 | 5 |
| 13 | 37.5 | 6.6 | 4.8 |
| 16 | 37.5 | 6.6 | 5 |
| 20 | 45 | 6.6 | 6.5 |
| 25 | 55 | 6.8 | 6 |
| 32 | 55 | 6.8 | 6 |

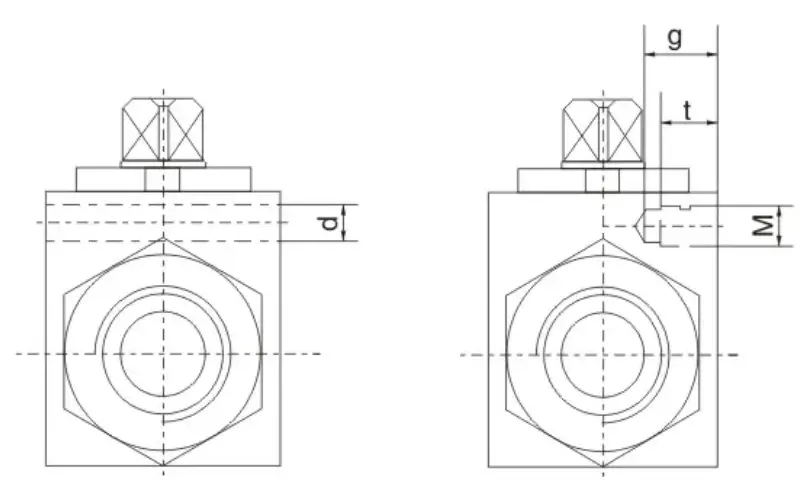

Thread Holes Dimensions
| DN | A | t | F | g | M |
|---|---|---|---|---|---|
| 4 | 30 | 6.7 | 6 | 9 | M6 |
| 6 | 30 | 6.7 | 6 | 9 | M6 |
| 10 | 32 | 8 | 5.5 | 10 | M6 |
| 13 | 37.5 | 9 | 6 | 11 | M6 |
| 16 | 37.5 | 8 | 8 | 10.5 | M6 |
| 20 | 45 | 13 | 7.5 | 15 | M10 |
| 25 | 45 | 13 | 7.5 | 15 | M10 |
| 32 | 45 | 13 | 7.5 | 15 | M10 |
Side Double-Threaded Mounting Holes
| DN | E | F | t | d |
|---|---|---|---|---|
| 4 | 24 | 4.5 | 9 | M6 |
| 6 | 24 | 4.5 | 9 | M6 |
| 10 | 32 | 5.5 | 12 | M6 |
| 13 | 36 | 6 | 12 | M6 |
| 16 | 32 | 6.5 | 12 | M6 |
| 20 | 45 | 7.5 | 12 | M6 |
| 25 | 45 | 7.5 | 12 | M6 |
| 25/32 | 45 | 7.5 | 12 | M6 |
