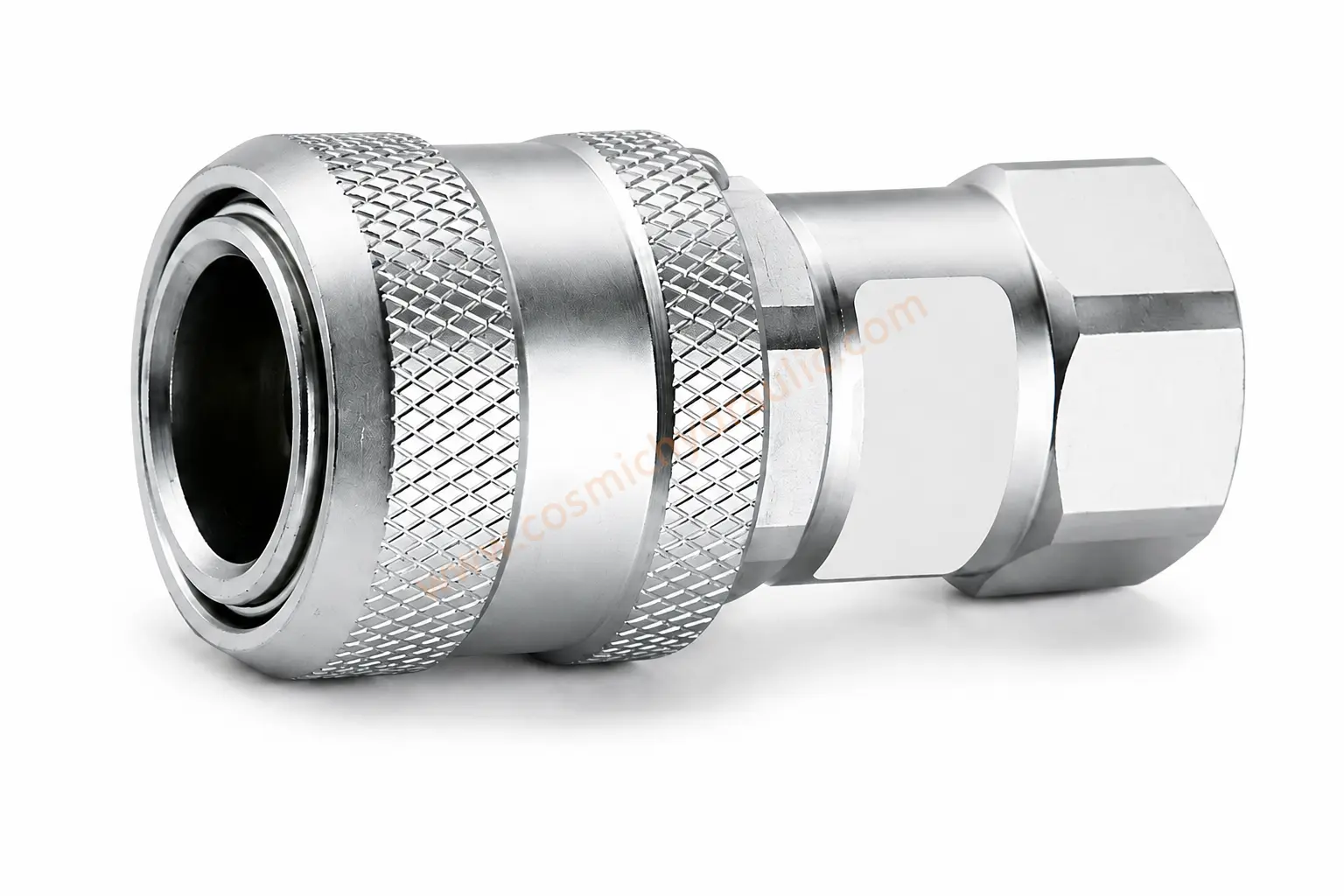

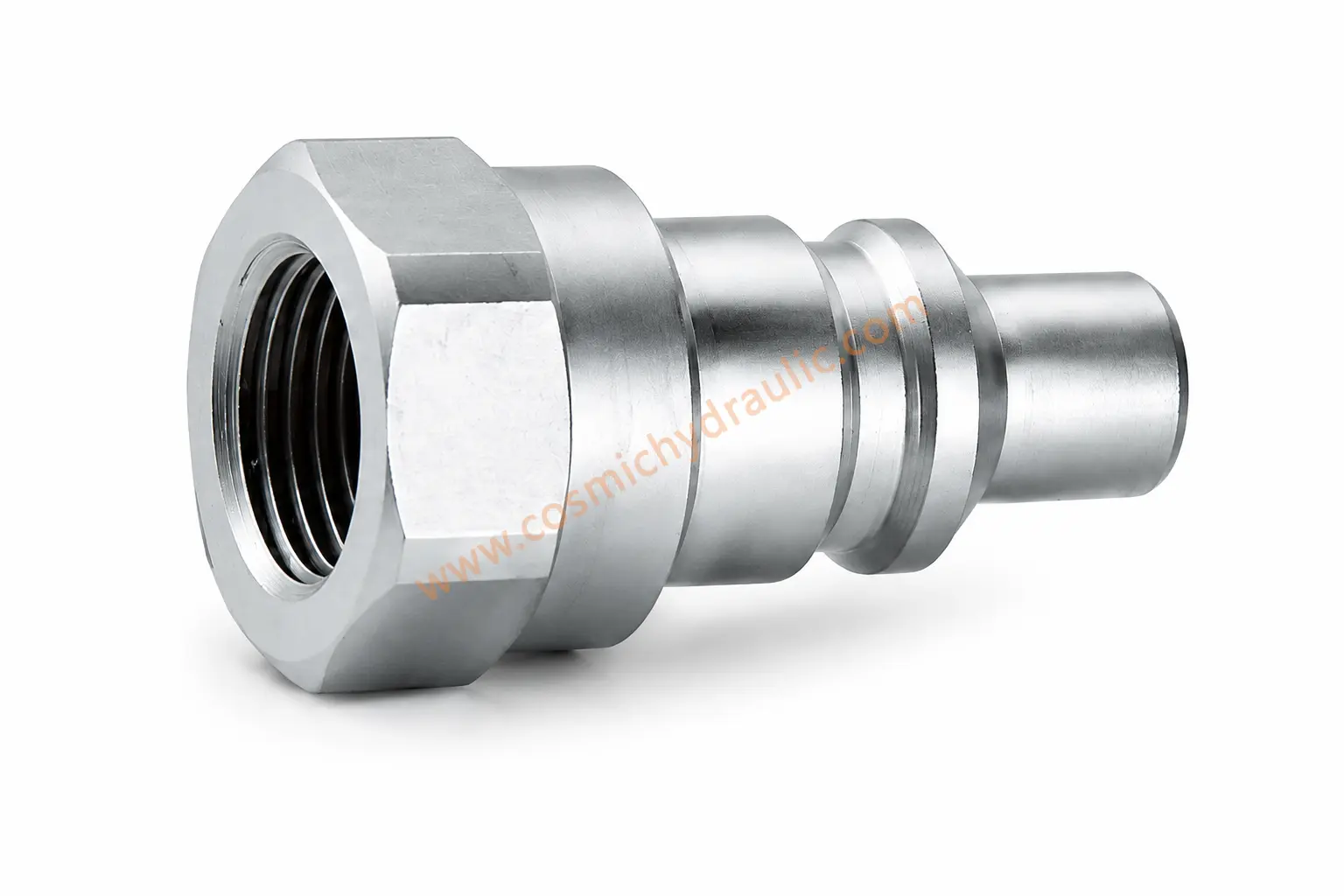

ZY-TC Series
ZY-TC high-pressure quick couplings serve construction, railway maintenance, house moving, and hydraulic jacking equipment with faster positive connection than threaded types.
Features
- A positive valve stop and stem guide maintain alignment and provide a metal-to-metal stop so the valves open fully every time.
- Precision-machined valves with elastomeric seals provide positive shut-off after disconnection.
- Hardened nipples, sleeves, and solid bar-stock construction resist hydraulic and mechanical shock.
- A durable ball-locking mechanism distributes workload across multiple balls, reduces hose torque, and prolongs hose life; these products must not be used as swivels.
- A small-diameter mating seal minimizes separating force for easier connection and disconnection at pressures up to approximately 5000 PSI.
- The sleeve locking mechanism prevents accidental disconnection when the coupling is dragged along the ground.
- Compatible with PARKER TC series.
Technical Specifications
| Specification | Value |
|---|---|
| Body Size (in) | 3/8 |
| Rated Pressure (MPa) | 69 |
| Rated Flow (L/min) | 23 |
| Temperature Range (NBR) | -20℃ to +100℃ |

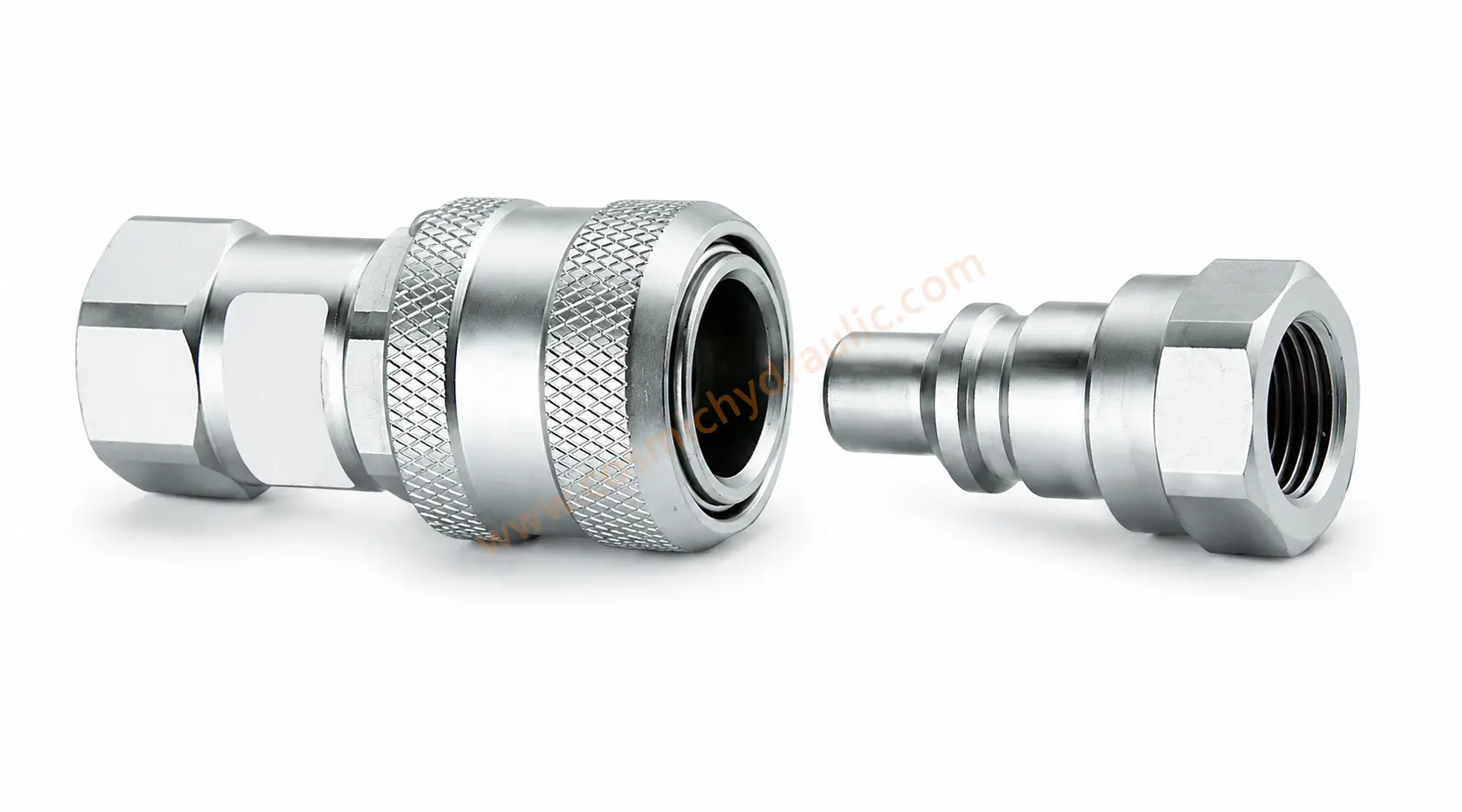

Coupling Fitting
The positive locking design provides reliable, fast connection for high-pressure hydraulic equipment while reducing downtime caused by threaded connections.
| PART No. | ISO | L | L1 | L2 | L3 | D1 | D2 | CH1 | CH2 | T |
|---|---|---|---|---|---|---|---|---|---|---|
| ZY-TC-SP | DN10 | 79 | 62.5 | 44 | 28.2 | 32 | 11.2 | 24 | 24 | ZG3/8 G3/8 NPT3/8 |
