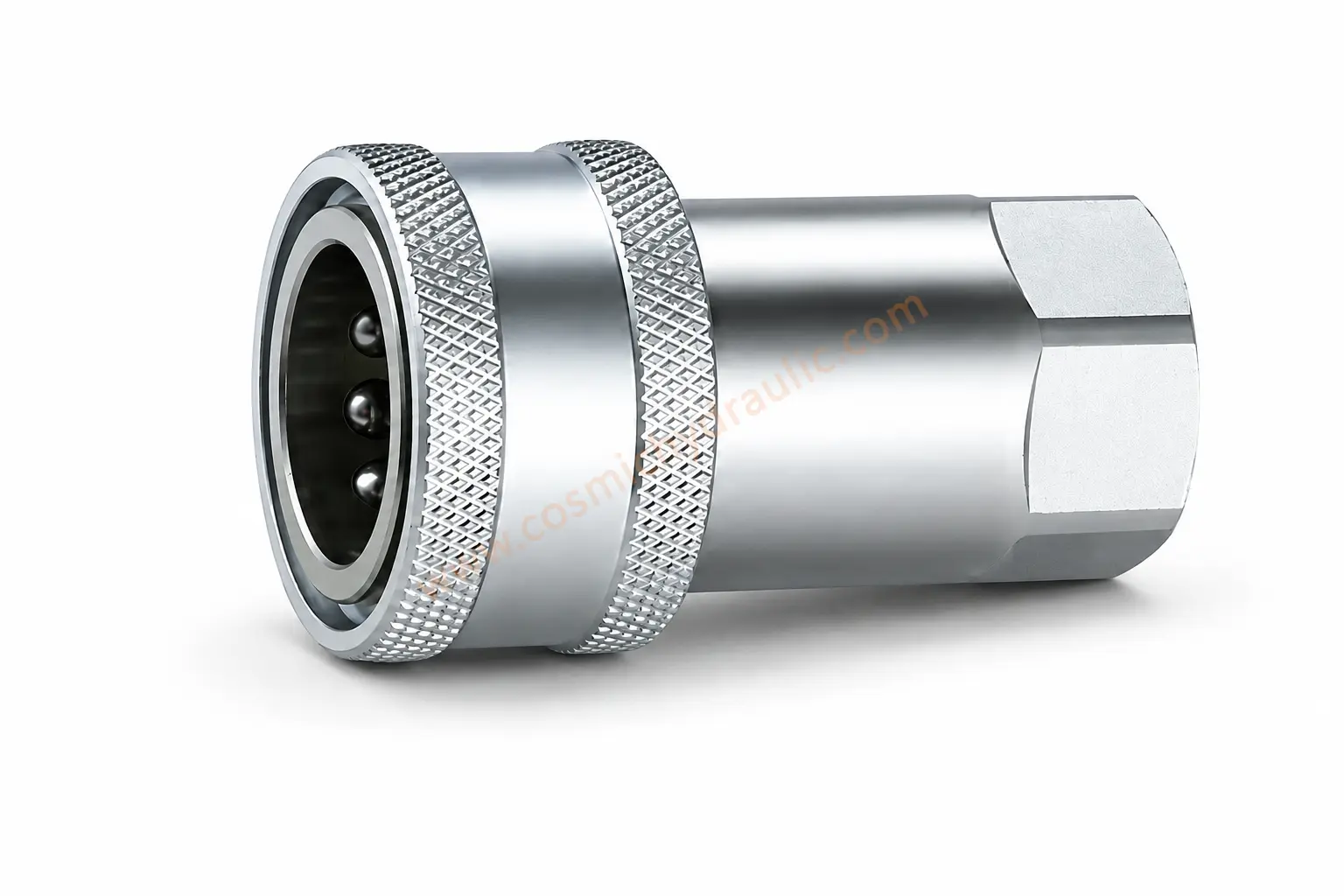

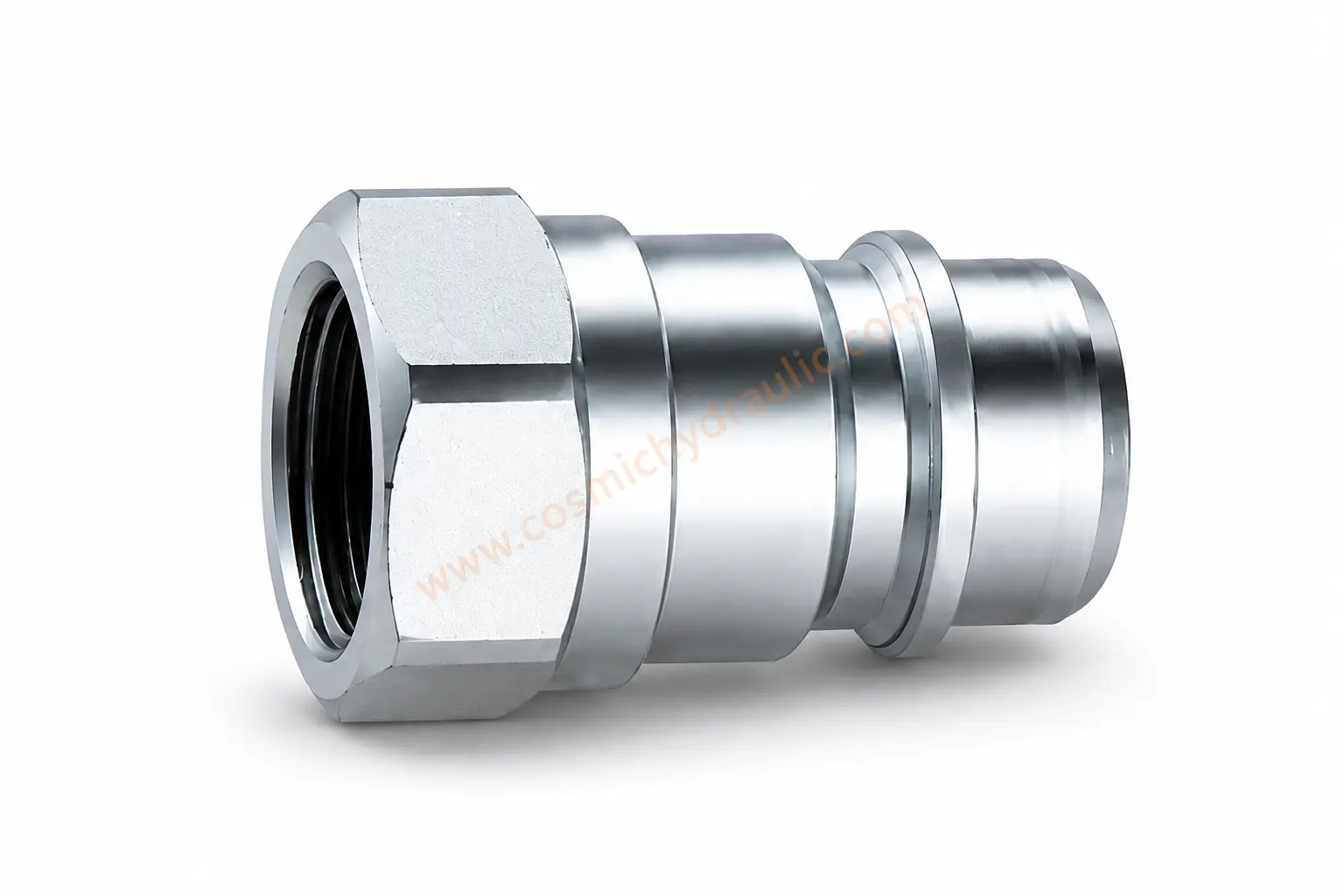

ZY-C1 Series
ZY-C1 ISO 5675 hydraulic quick couplings for agricultural machinery, tractors, construction equipment, and other demanding hydraulic applications.
Features
- Poppet valves are available to prevent uncoupled leakage.
- Poppet valves open automatically when coupled within rated working pressure to maintain flow.
- Hard chrome-alloy balls are spring-loaded against the valve seat.
- The valve provides a metal-to-metal seal between the ball and conical seat.
- Critical parts are induction hardened for durability.
- A dependable ball-locking mechanism holds the mating halves together.
- Socket and plug are precision machined from solid bar stock.
- The ZY-C1 Series conforms to ISO 5675.
- Compatible with PARKER 4000 and FASTER NV/NS series.
Technical Specifications
| Body Size (in) | 1/4 | 3/8 | 1/2 | 3/4 | 1 |
|---|---|---|---|---|---|
| Code | 02 | 03 | 04 | 06 | 08 |
| Rated Pressure - Steel (MPa) | 34.5 | 27.6 | 27.6 | 20.7 | 20.7 |
| Rated Pressure - Stainless Steel (MPa) | 13.8 | 13.8 | 10.4 | 10.4 | 7 |
| Rated Pressure - Brass (MPa) | 7 | 7 | 7 | 7 | 7 |
| Rated Flow (L/min) | 11.5 | 23 | 45.5 | 106 | 190 |
| Temperature Range (NBR) | -20℃ to +100℃ | ||||
| Temperature Range (FKM) | -20℃ to +180℃ | ||||
Performance

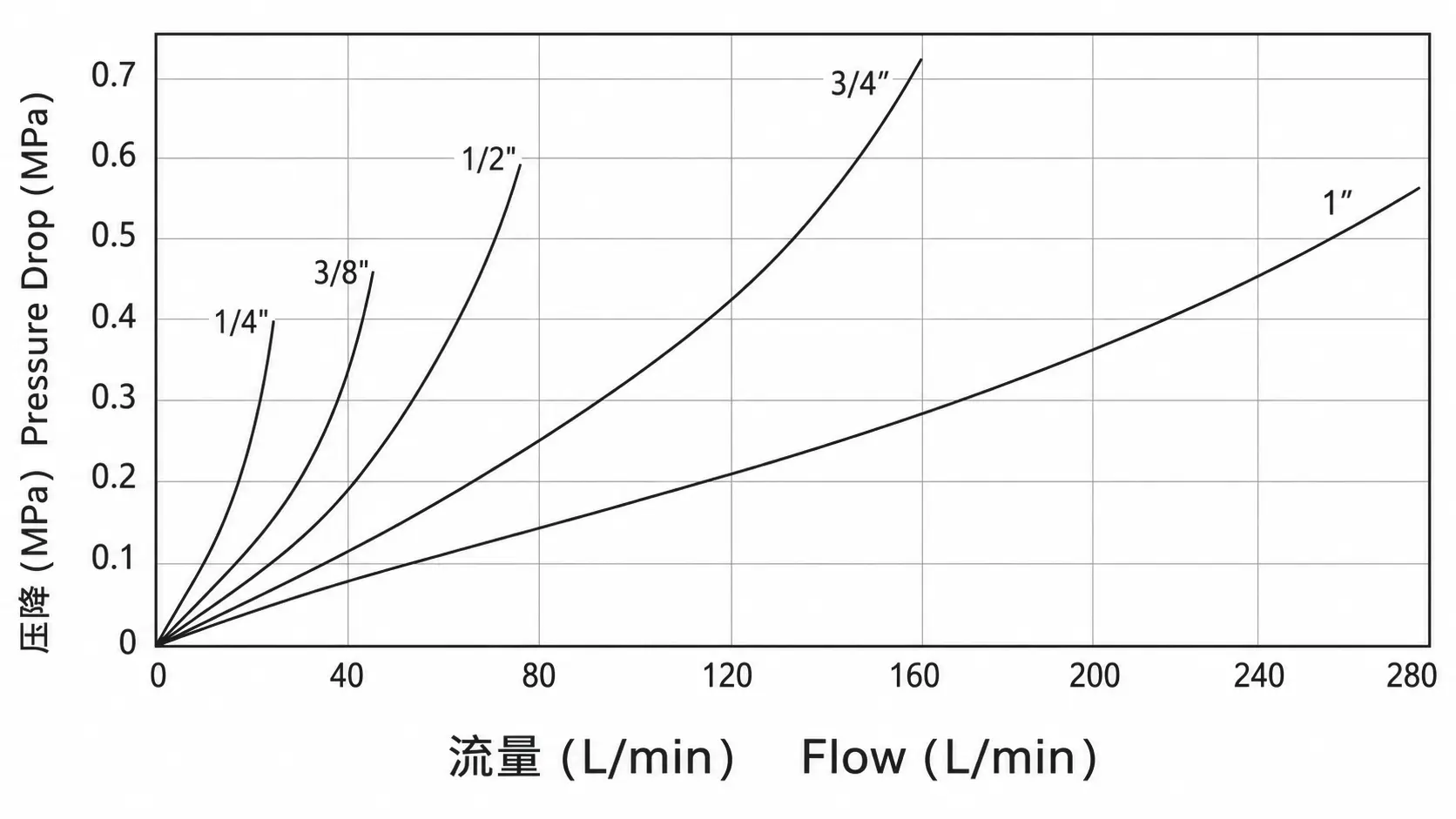

The performance curve shows pressure-drop changes for different sizes at rated flow.
Coupling Fitting

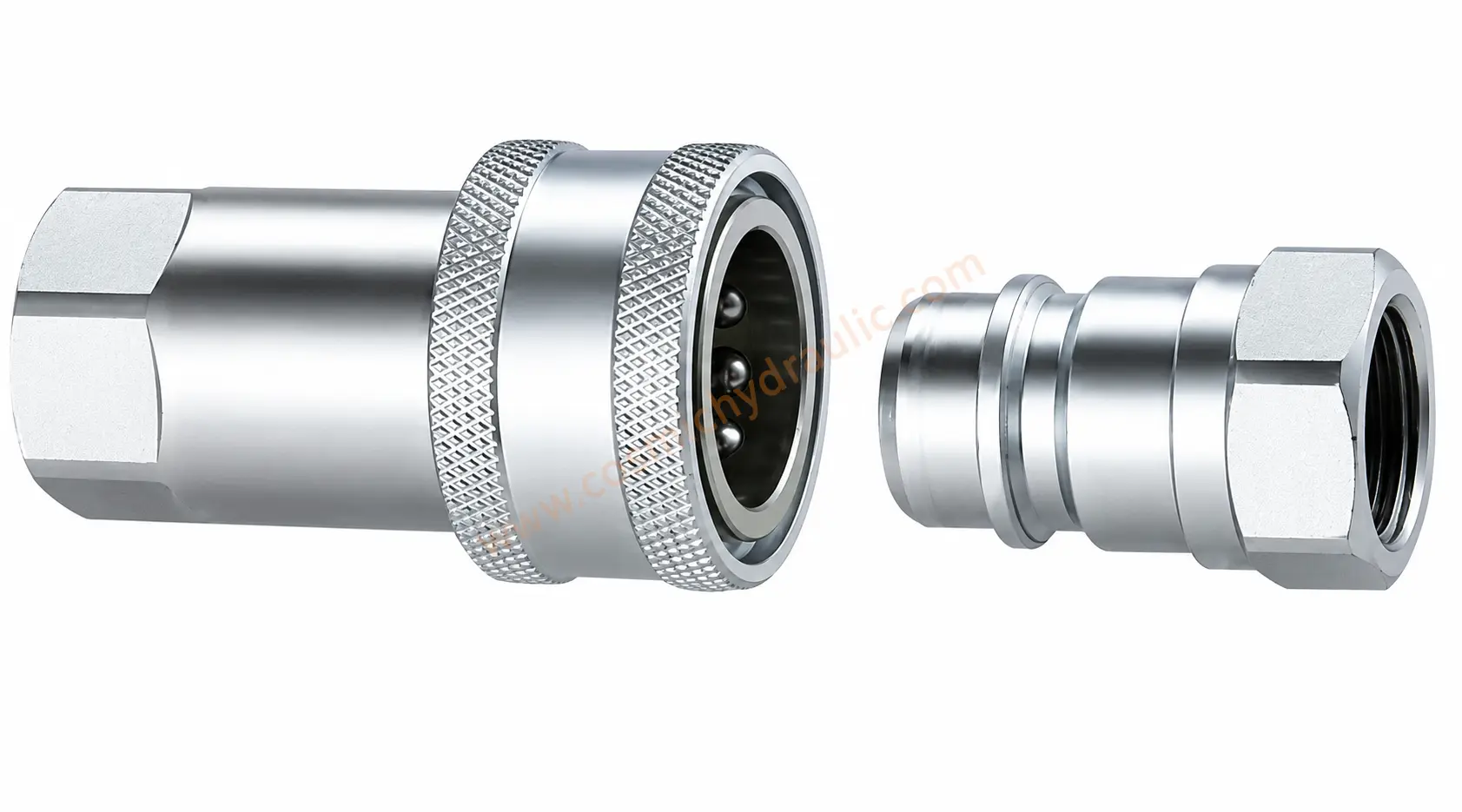

The coupling fitting combines the socket and plug into a secure hydraulic connection. When disconnected, the valves close automatically to help reduce oil loss.

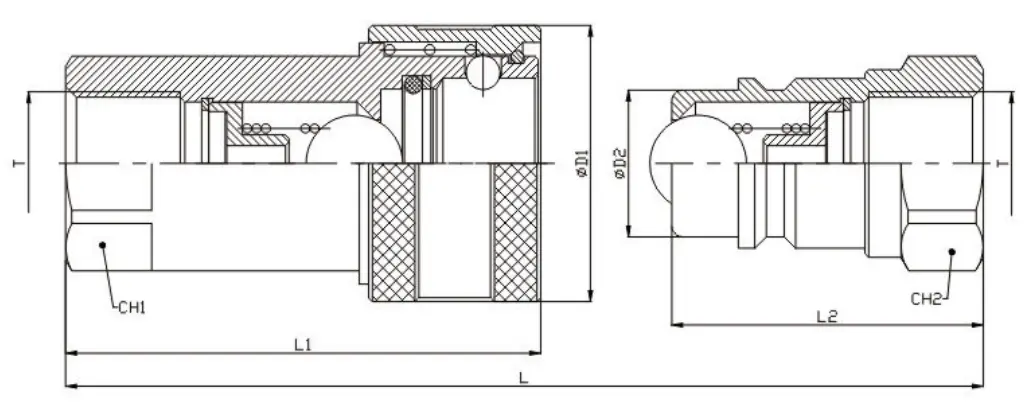

| PART No. | ISO | L | L1 | L2 | L3 | D1 | D2 | CH1 | CH2 | T |
|---|---|---|---|---|---|---|---|---|---|---|
| ZY-C1-02T-SP | DN6.3 | 72 | 53.5 | 37.5 | 18.5 | 27.5 | 14.2 | 19 | 19 | ZG1/4 G1/4 NPT1/4 |
| ZY-C1-03T-SP | DN10 | 83 | 63 | 40 | 22 | 34 | 19 | 24 | 24 | ZG3/8 G3/8 NPT3/8 |
| ZY-C1-04T-SP | DN12.5 | 88 | 66.5 | 43.5 | 27 | 38.5 | 20.5 | 27 | 27 | ZG1/2 G1/2 NPT1/2 |
| ZY-C1-06T-SP | DN20 | 108 | 82 | 53.5 | 32 | 48 | 28 | 34 | 34 | ZG3/4 G3/4 NPT3/4 |
| ZY-C1-08T-SP | DN25 | 127 | 96.5 | 63 | 38 | 56 | 31.3 | 41 | 41 | ZG1 G1 NPT1 |
