KZE-BC Series
KZE-BC thread-to-connect couplings are designed for dump trucks, buses, agricultural machinery, and mobile construction equipment.
Features
- The thread-to-connect coupling uses a socket with a wing-nut sleeve that can be operated manually with residual pressure present.
- Compatible with FASTER CVE and HOLMBURY VCR series.
Technical Specifications
| Body Size (in) | 3/4 | 1 |
|---|---|---|
| Code | 06 | 08 |
| Rated Pressure (MPa) | 27.6 | 20.7 |
| Rated Flow (L/min) | 94.5 | 189 |
| Temperature Range (NBR) | -20℃ to +100℃ | |
Performance

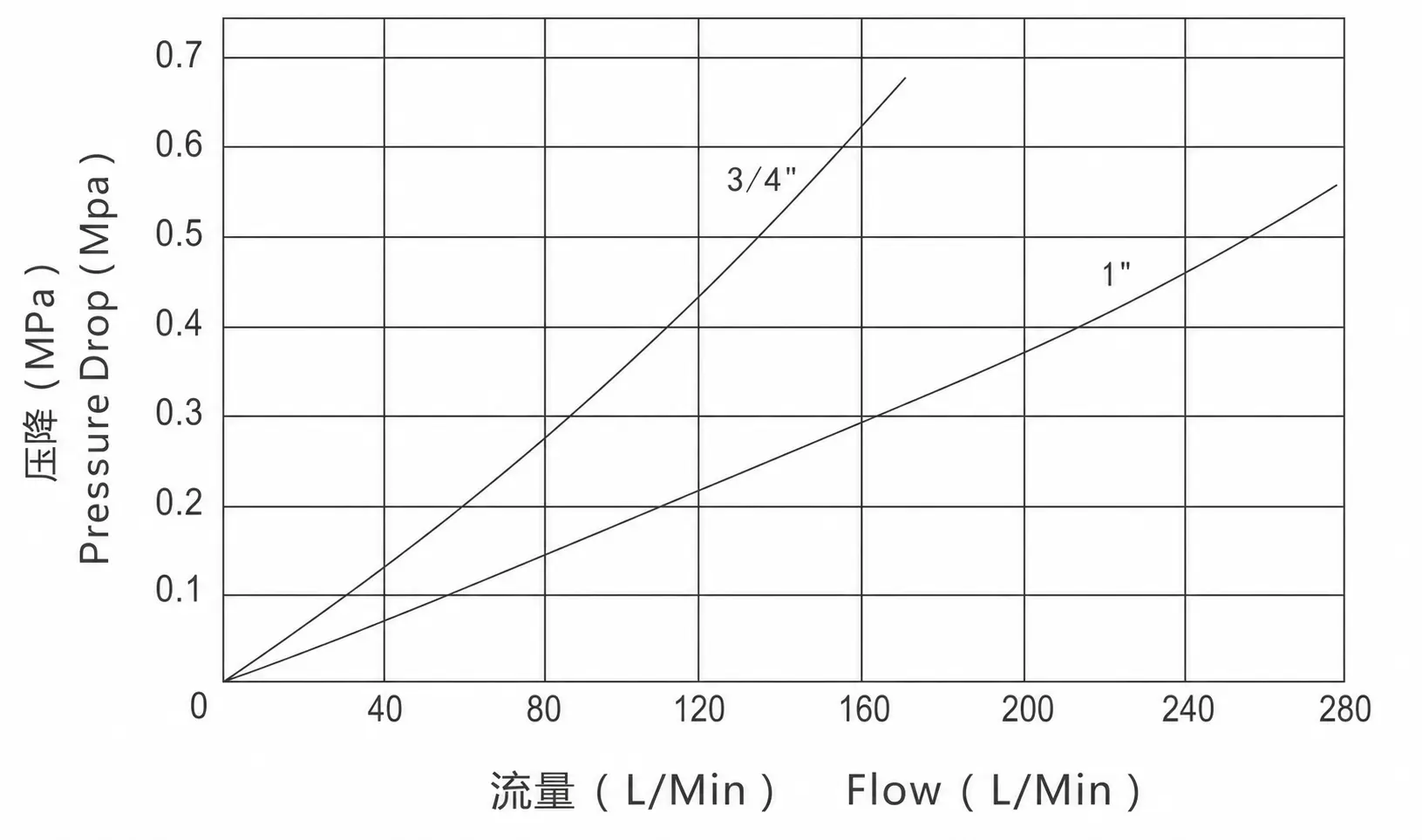

The performance curve shows pressure-drop changes for different sizes at rated flow.

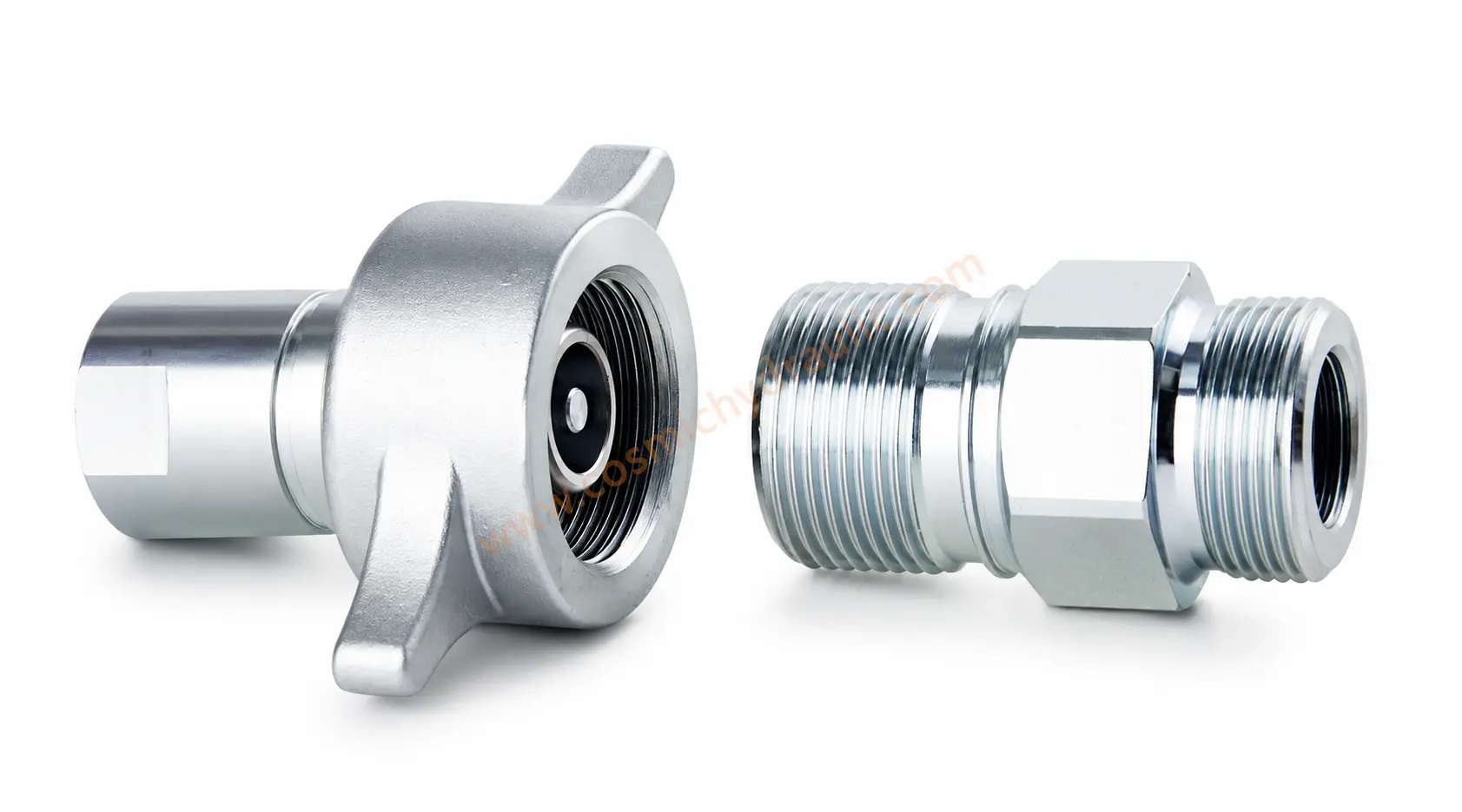

Coupling Fitting
The wing-nut sleeve supports manual thread-to-connect operation with residual pressure present.
| PART No. | ISO | L | L1 | L2 | L3 | D1 | D2 | CH1 | CH2 | T |
|---|---|---|---|---|---|---|---|---|---|---|
| KZE-BC-06-SP | DN20 | 133 | 78 | 78 | 36 | 115.5 | 1-3/4-10UN | 33 | 46 | ZG3/4 G3/4 NPT3/4 |
| KZE-BC-08-SP | DN25 | 145 | 83 | 83 | 41 | 115.5 | 2-1/8-12UN | 40 | 55 | ZG1 G1 NPT1 |
