ZY-FF Series

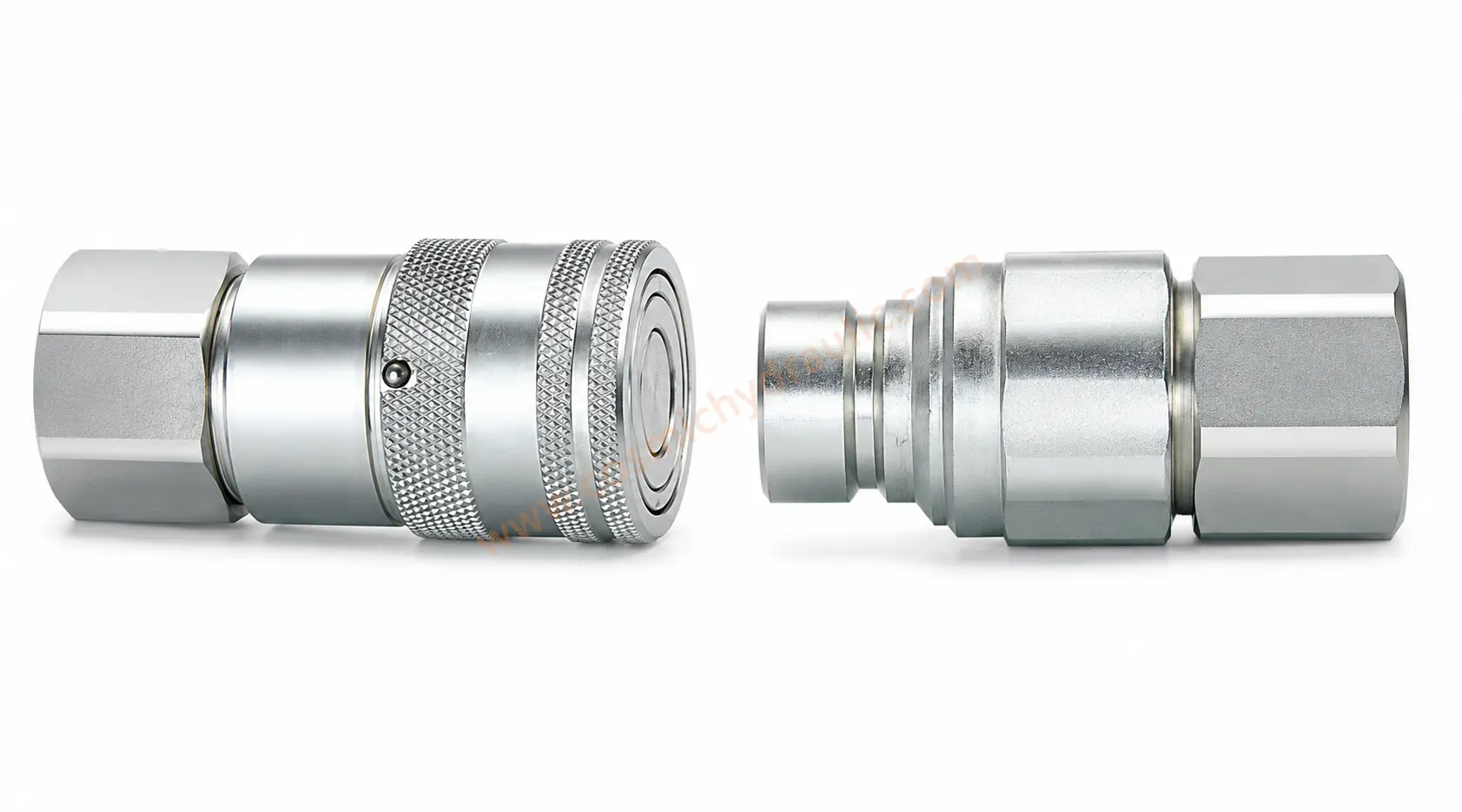

ZY-FF ISO 16028 flat face couplings for public utilities, overhead bucket hoists, construction, railway maintenance, mining, and hydraulic tools.
Features
- The new valve design resists high flow and impulse pressure.
- The rotating sleeve locking mechanism helps prevent accidental disconnection.
- The sleeve mechanism helps keep dirt out and incorporates a spring dust seal.
- Hardened nipples, sleeves, and solid bar stock improve impact resistance.
- A bonded nitrile/PTFE anti-blowout seal supports severe service.
- The durable ball-locking mechanism provides reliable connection and reduces hose torque.
- Flush valving minimizes fluid loss and air inclusion.
- Environmentally conscious zinc plating improves corrosion resistance.
- The ZY-FF Series conforms to ISO 16028.
- Compatible with PARKER FE/FF, STUCCHI A8008, AEROQUIP FD89, and HANSEN QA2900 series.
Technical Specifications
| Body Size (in) | 1/4 | 3/8 | 1/2 | 3/4 | 1 |
|---|---|---|---|---|---|
| Code | 02 | 03 | 04 | 06 | 08 |
| Rated Pressure - Steel (MPa) | 34.5 | 27.6 | 27.6 | 20.7 | 20.7 |
| Rated Pressure - Stainless Steel 316 (MPa) | 13.8 | 13.8 | 10.4 | 10.4 | 7 |
| Rated Flow (L/min) | 11.5 | 23 | 45.5 | 106 | 190 |
| Temperature Range (NBR) | -20℃ to +100℃ | ||||
| Temperature Range (FKM) | -20℃ to +180℃ | ||||
Performance

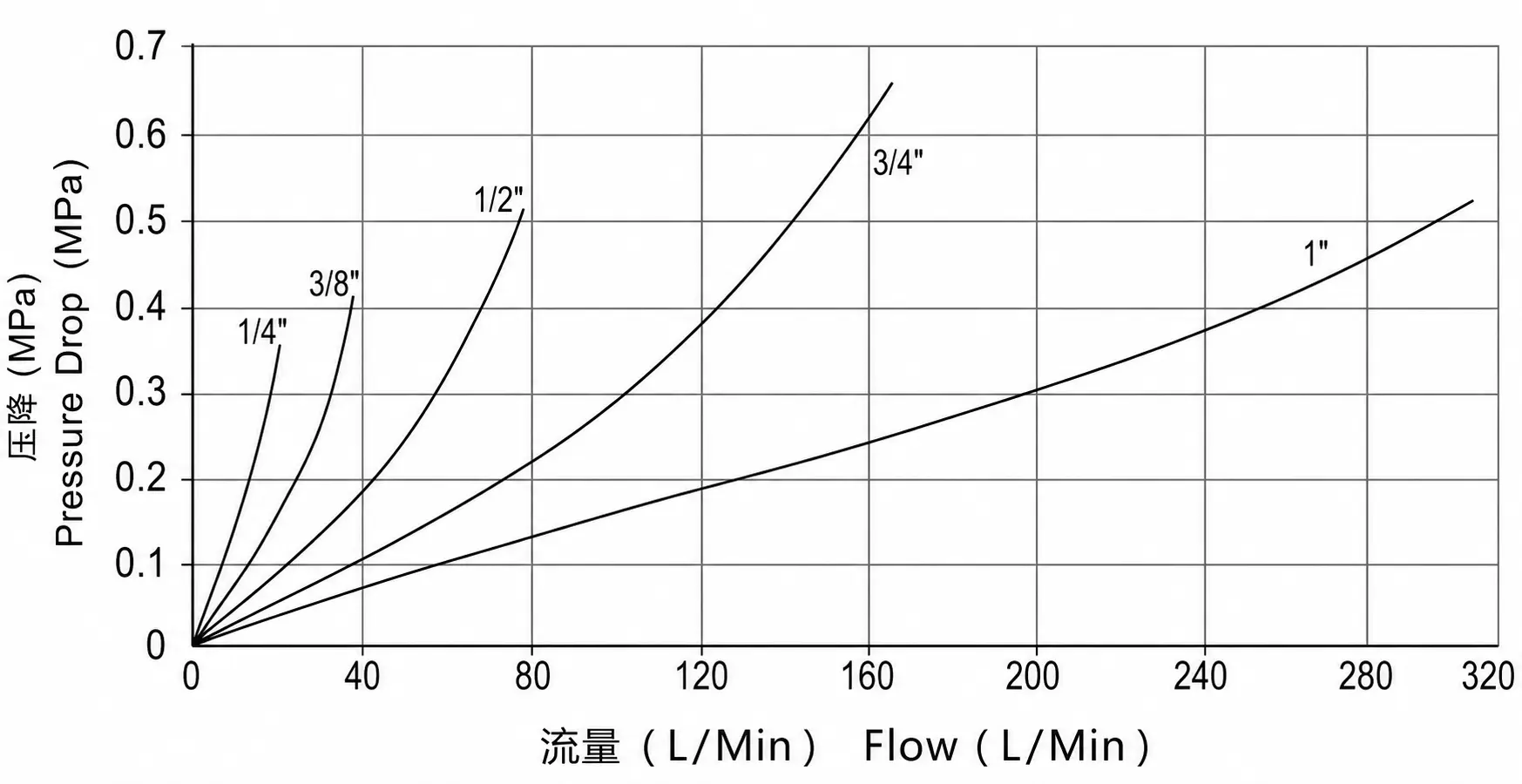

The performance curve shows pressure-drop changes for different sizes at rated flow.
Coupling Fitting

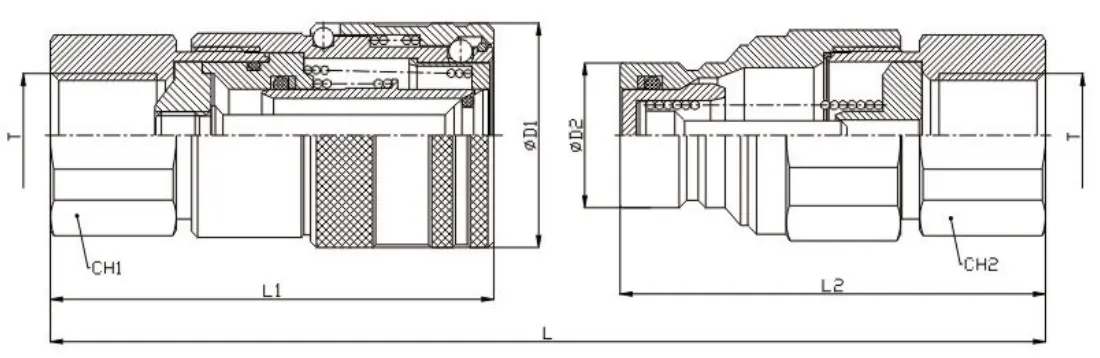

The flat-face coupling assembly minimizes leakage and contamination.
| PART No. | ISO | L | L1 | L2 | D1 | D2 | CH1 | CH2 | T |
|---|---|---|---|---|---|---|---|---|---|
| ZY-FF-02T-SP | DN6.3 | 96 | 58 | 49 | 28 | 16.2 | 20 | 20 | M14*1.5 G1/4 NPT1/4 9/16-18UNF |
| ZY-FF-03T-SP | DN10 | 108 | 68 | 56 | 32 | 19.8 | 24 | 24 | M16*1.5 M18*1.5 G3/8 NPT3/8 G1/2 |
| ZY-FF-04T-SP | DN12.5 | 129 | 75 | 72 | 38 | 24.5 | 32 | 32 | M22*1.5 G1/2 NPT1/2 G3/4 NPT3/4 |
| ZY-FF-06T-SP | DN16 | 138 | 80 | 75.5 | 42 | 27 | 36 | 36 | M27*2 G3/4 NPT3/4 |
| ZY-FF-08T-SP | DN19 | 172 | 100 | 94 | 48 | 30 | 41 | 41 | M33*2 G1 NPT1 |
| ZY-FF-10T-SP | DN25 | 178 | 111.5 | 90 | 56 | 36 | 55 | 55 | G1-1/4 NPT1-1/4 |
| ZY-FF-12T-SP | DN32 | 233 | 150 | 112 | 79.5 | 57 | 65 | 65 | G1-1/2 NPT1-1/2 |
