ZY-KSA
ZY-KSA

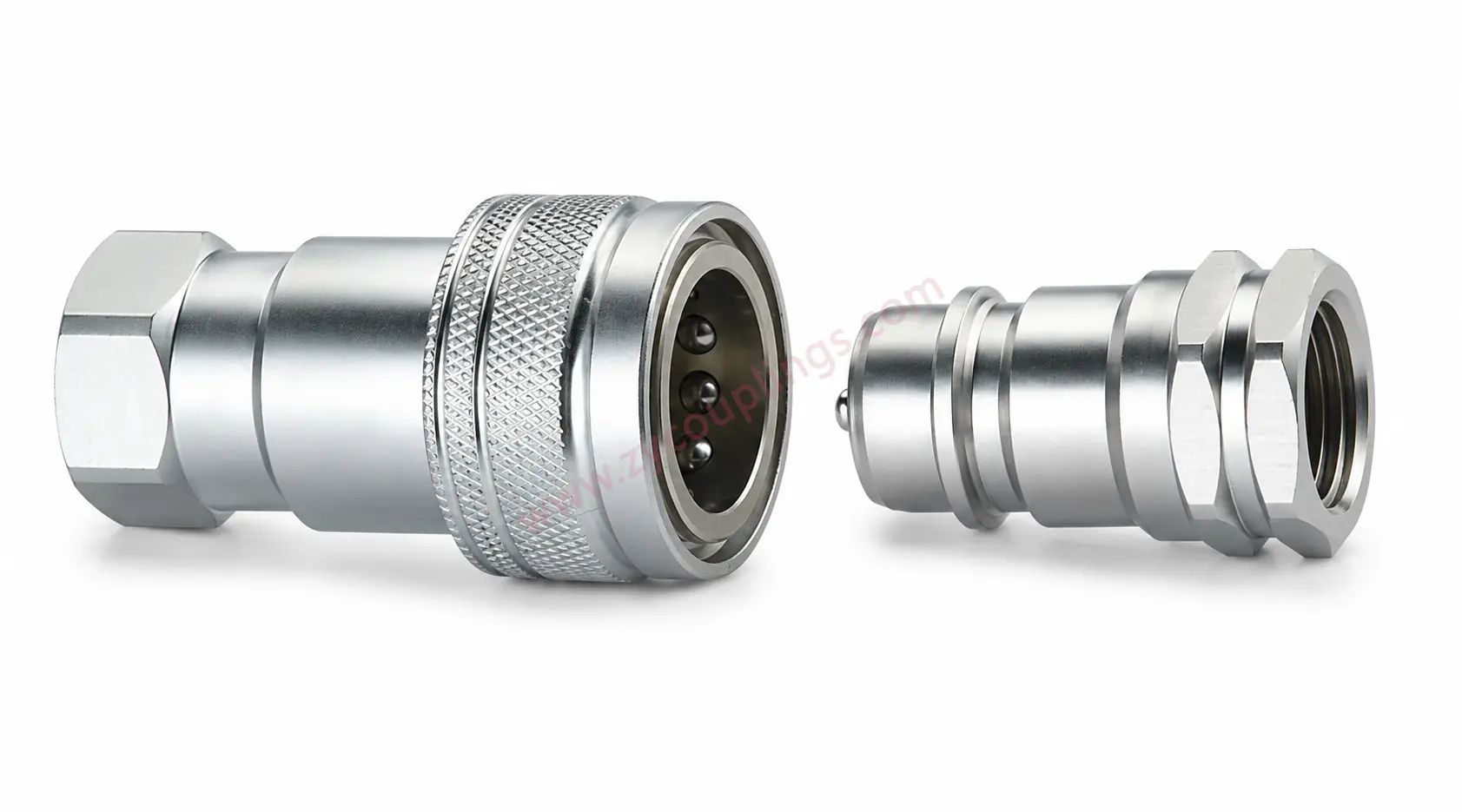

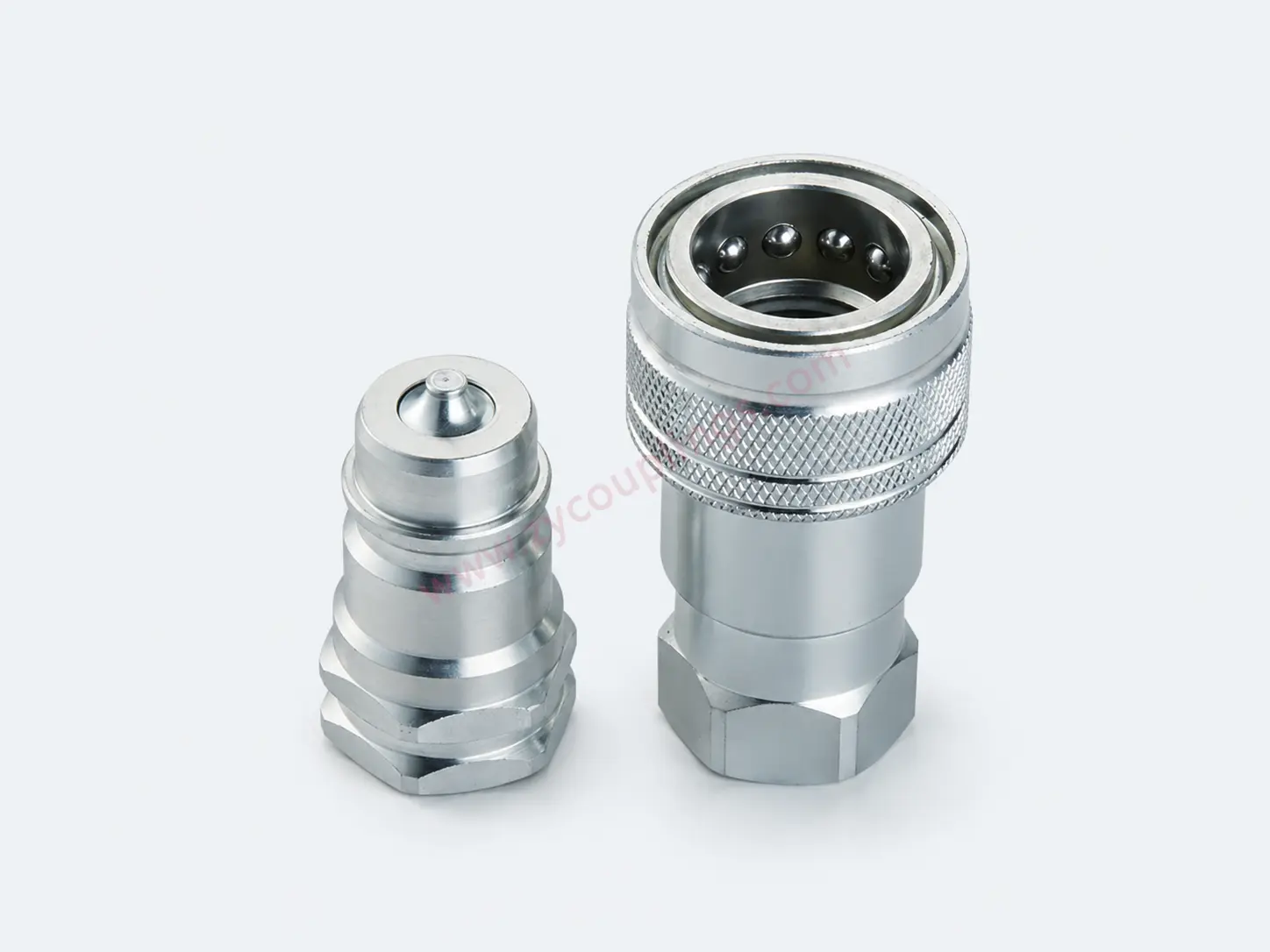

ZY-KSA close type hydraulic quick couplings for construction equipment, forestry equipment, agricultural machinery, hydraulic tools, oil equipment, steel equipment, and other demanding hydraulic applications.
Request a Quote
Technical Data
Specifications
| Standard | ISO 7241-A |
|---|---|
| Body Material | Carbon steel |
| Body Sizes | 1/4, 3/8, 1/2, 3/4, 1 |
| Rated Pressure | 20.7-34.5 MPa |
| Rated Flow | 11.5-190 L/min |
| Seal Materials | NBR / FKM |
